3 Resistance Wheatstone Bridge

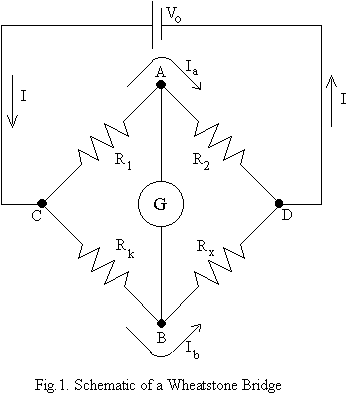

Consider the Wheatstone Bridge circuit. If the resistances R1 and R2 were zero(i.e if they were not present without altering the connections) then, the ratio of resistances will be 0:0. Will the current passing through G still be zero?

Note by Rajath Krishna R
4 years, 4 months ago

No vote yet
1 vote

  Easy Math Editor

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold

- bulleted
- list

  • bulleted
  • list

1. numbered
2. list

  1. numbered
  2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1

paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
    # 4 spaces, and now they show
    # up as a code block.

    print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in \( ... \) or \[ ... \] to ensure proper formatting.
2 \times 3 \( 2 \times 3 \)
2^{34} \( 2^{34} \)
a_{i-1} \( a_{i-1} \)
\frac{2}{3} \( \frac{2}{3} \)
\sqrt{2} \( \sqrt{2} \)
\sum_{i=1}^3 \( \sum_{i=1}^3 \)
\sin \theta \( \sin \theta \)
\boxed{123} \( \boxed{123} \)

Comments

Sort by:

Top Newest

If \(R_1 = R_2 = 0 \Omega\), then \(CAD\) is a short. So, \(R_k\), \(R_x\), and \(G\) are shorted out of the circuit.

This means that the currents through \(R_k\), \(R_x\), and \(G\) are all \(0 A\).

Jimmy Kariznov - 4 years, 4 months ago

Log in to reply

No current will pass through points CD, as the equivalent resistance between those points would be \[R_{eq}=\frac{0[R_k+R_x]}{0+ R_k+R_x} = 0\]. And since resistance is zero, no current will flow through \(CD\).

Akshat Jain - 4 years, 4 months ago

Log in to reply

YES

Swarali Patil - 2 years, 7 months ago

Log in to reply

yes?

Mario Vale - 2 years, 7 months ago

Log in to reply

0

Saransh Upadhyaya - 3 years, 1 month ago

Log in to reply

zero A

Ahmed Elgazar - 4 years, 4 months ago

Log in to reply

×
