Can you prove this?

There are two intersecting circles G1 and G2 with centres at A and B respectively. They meet at points D and G. You choose any two points C and F on the cirle G1. From C, you draw a line through D to meet G2 at E. Through E, draw a line passing through G to meeet G1 at J. Now, you draw a line from F through G to meet G2 at H. From H, you draw a line through D to meet the circle circle at I. Connect C and F amd I and J. Prove that IJ is parallel to CF.

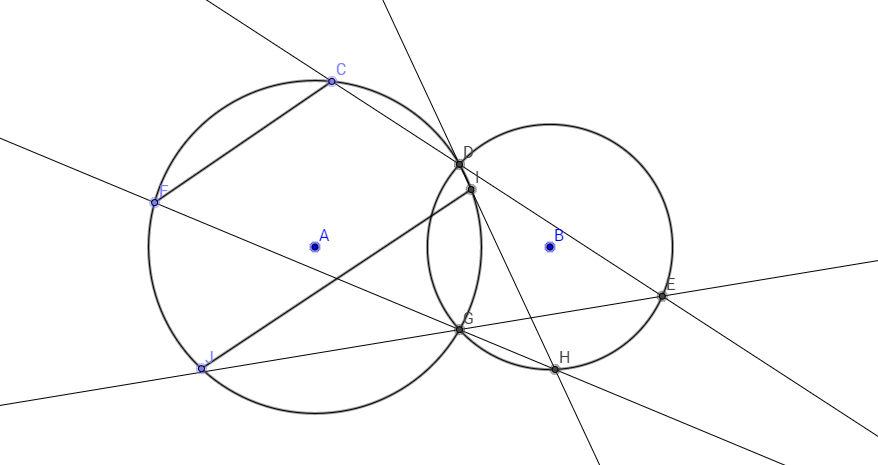

This figure is part of the solution:

I changed the label of F to D. So now, it's prove that CD is parallel to IJ. Start out with angle JCI, which is equal to angle JDI. So now, we only have to show that angle JDC is equal to angle ICD and we get an isosceles trapezium CDIJ and we're done. Angle JDC is equal to angle JFC which is equal to HFG which is equal to angle HEG, which is equal to angle IED which is equal to angle ICD.

Q.E.D.

If you want a more challenging version of this, then checkout my problem here

Note by Vishnu C
2 years, 4 months ago

No vote yet
1 vote

Comments

Sort by:

Top Newest

This is just a quick hunch, given two such circles G1 and G2 intersecting at points D, G, given any point E on G2, and extending lines ED and EG to meet G1 at points C and J, the chord length of CJ is constant. The rest of the proof follows.

I'll back to this a little later with maybe a graphic to show this.

Okay, here's the graphic. With a bit of angle chasing, it's easy to show that, given angles \(a, b\) formed by two intersecting circles, for any \(x\) formed by arbitrary point \(E\), the angle subtended by chord \(CJ\) is \(a+b\). Therefore, the length of chord \(CJ\) is constant for any \(E\). With this, it's straightforward to show that \(IJ\) is parallel to \(GF\).

Michael Mendrin · 2 years, 4 months ago

Log in to reply

@Michael Mendrin Wow! Really awesome proof. This question is not original and is from last year's entrance exam to a college over here. I couldn't solve it when I was going through the paper yesterday. I too tried to relate it to an isosceles trapezium, but I gave up. I had to look up the solution to this question to get the method.

Their method made it seem so simple that I felt like smacking myself in the head. I have a figure that I'll post which makes it really obvious. I changed the labels, so now it's prove that CD is parallel to IJ. Vishnu C · 2 years, 4 months ago

Log in to reply

@Vishnu C If you're up for one more challenge, which is sort of related to this problem, check out this one here. Vishnu C · 2 years, 4 months ago

Log in to reply

I shared it now,no I didn't written the exam of CMI,that's good !are you happy for sharing this question Kutumbaka Jaswanth · 2 years, 4 months ago

Log in to reply

@Kutumbaka Jaswanth I think you misunderstood me. I meant to say why didn't you post it yet? Vishnu C · 2 years, 4 months ago

Log in to reply

@Vishnu C Ok, I am sorry for this mistake Kutumbaka Jaswanth · 2 years, 4 months ago

Log in to reply

It is an interesting GEOMETRIC question, in which I had seen!!!!!! Kutumbaka Jaswanth · 2 years, 4 months ago

Log in to reply

@Kutumbaka Jaswanth Why didn't you share it then? I'm sure that it would had attracted a lot of people. Did you write the exam for CMI? That's where I got the question from : ) Vishnu C · 2 years, 4 months ago

Log in to reply

That's an interesting Geom question! Calvin Lin Staff · 2 years, 4 months ago

Log in to reply

@Calvin Lin Glad you liked it. Vishnu C · 2 years, 4 months ago

Log in to reply

It might help to make a clearer picture using Geogebra. I adjusted the points so that it'd look harder, but sometimes in geometry, the best investment of your time is in drawing the figure. Vishnu C · 2 years, 4 months ago
