Cyclic Quadrilateral and the Isosceles

Imgur

Imgur

A cyclic quadrilateral \(ABCD\) has \(AB=BC\). Let the intersection of \(AC\) and \(BD\) be \(P\). In addition, let the line through \(D\) tangent to the circumcircle of \(ABCD\) intersect the extension of \(AC\) at \(Q\).

Prove that \(PQ=DQ\).

Note by Daniel Liu
3 years, 4 months ago

No vote yet
1 vote

  Easy Math Editor

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold

- bulleted
- list

  • bulleted
  • list

1. numbered
2. list

  1. numbered
  2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1

paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
    # 4 spaces, and now they show
    # up as a code block.

    print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in \( ... \) or \[ ... \] to ensure proper formatting.
2 \times 3 \( 2 \times 3 \)
2^{34} \( 2^{34} \)
a_{i-1} \( a_{i-1} \)
\frac{2}{3} \( \frac{2}{3} \)
\sqrt{2} \( \sqrt{2} \)
\sum_{i=1}^3 \( \sum_{i=1}^3 \)
\sin \theta \( \sin \theta \)
\boxed{123} \( \boxed{123} \)

Comments

Sort by:

Top Newest

This is the quickest proof that I know of. Draw the tangent through \(B\). Since \(AB=BC\), then the tangent is parallel to \(QC\). But the tangent through \(B\) makes an angle with \(BD\) the same as the tangent through \(D\) makes with \(BD\). Therefore, since this is the same as the angle \(QC\) makes with \(BD\), triangle \(DQP\) is isosceles and \(PQ=DQ\).

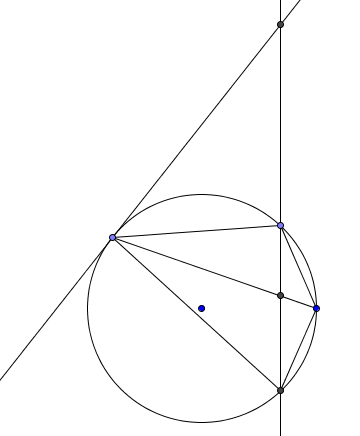

An annotated picture is worth a thousand words more than an un-annotated picture.

Lui's Cyclic

Lui's Cyclic

Michael Mendrin - 3 years, 4 months ago

Log in to reply

Can you add this to the Brilliant Wiki, under a relevant skill in Circles? Thanks!

@Daniel Liu

Calvin Lin Staff - 3 years, 3 months ago

Log in to reply

This is just angle chasing. We have that \(\angle QDP = \angle DCB\) and \[\angle QPD = \angle CPB = 180^{\circ} - \angle PCB - \angle PBC = 180^{\circ} - \angle PAB - \angle DAP \\ = 180^{\circ} - \angle DAB = \angle DCB = \angle QDP.\] It hence follows that \(QD=QP.\) \(\blacksquare\)

Sreejato Bhattacharya - 3 years, 4 months ago
