Dissecting Hinged Dissections

Polygons of equal area can be cut up into identical sets of smaller pieces. Amazing, right?

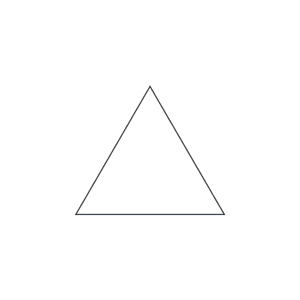

A beautiful new result is that this is also true of hinged dissections, like in the gif. Here’s the math behind the beauty, co-developed by longtime Brilliant user Scott Kominers.

Dissection of 2 polygons

Before we look at a hinged dissection, let's first consider the much simpler case of dissecting two polygons with equal area, where we want to cut them up smaller pieces which allows us to rearrange one polygon into the other. We present the main ideas, along with a quick sketch of the proof:

With these ideas, we can prove that it is possible to dissect 2 polygons of equal area:

Proof of dissection: The goal is to dissect a polygon of area aa into a square of side length a \sqrt{a} . Then by claim 1, any 2 polygons of equal area can be dissected into identical pieces.
Suppose we have a polygon PP of area a a . We triangulate it into smaller pieces (Claim 2), and dissect each of them into a rectangle (Claim 3), which we then dissect into individual squares square (Claim 4). We combine these squares iteratively (Claim 5) to obtain a single square of side length a \sqrt{a} . Hence we are done. _ \square

Hinged dissection of 2 polygons

Now that we understand how dissections amongst polygons work, let's consider having hinged dissections, in which the vertices of the pieces are connected to each other in the same way, which would restrict the possible movement of the pieces. For example, while the image in claim 3 immediately allows for a hinged dissection as indicated by the arrows, the images in claim 4 and 5 do not. We present the main ideas, and the proof of these claims is available in the paper.

Given a hinged figure, define the incidence graph which is constructed by placing a vertex at each piece and hinge, and 2 vertices are connected by an edge if one vertex represents a piece and the other represents a hinge on the piece.

Incidence graphs of hinged dissections in claim 3 Incidence graphs of hinged dissections in claim 3

Claim 6. Given a hinged figure, if the incidence graph is a tree FF, then for any partition into subtrees AA and BB, are able to move rooted subtrees using subdivisions and shift AA to any part of BB to obtain a new incidence graph F F'.

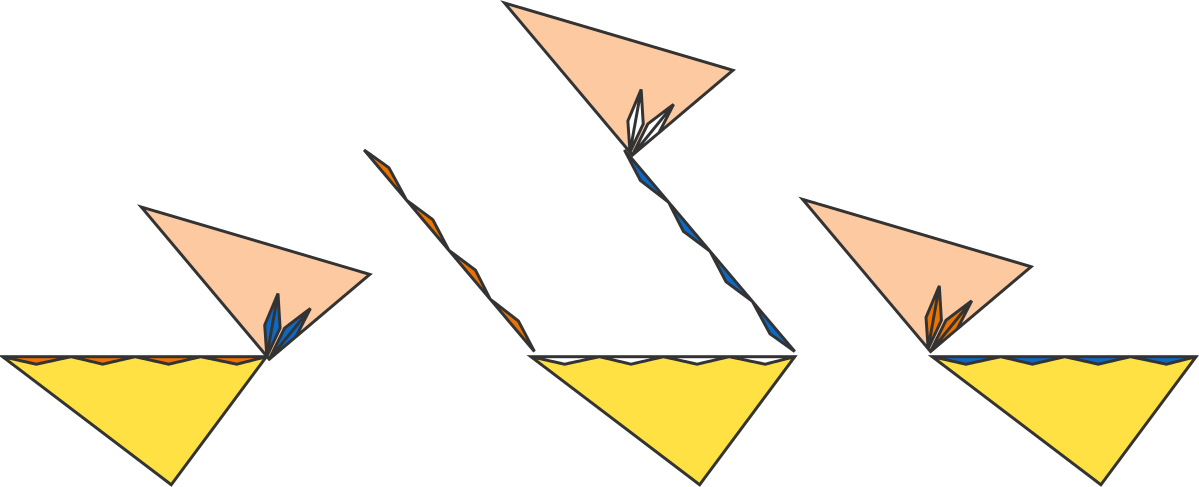

Example of how to move along a single edge Example of how to move along a single edge

Claim 7. Given any hinged figure FF, there is a subdivision GG such that all valid configurations of GG are reachable by a continuous non-self-intersecting motion.

With these ideas, we can prove that hinged dissection of 2 polygons of equal area is possible:

Proof of hinged dissection: Start with any valid dissection of the polygons PP and QQ which have identical pieces. Hinge the vertices of PP to form a tree, and do the same for QQ. By claim 6, there is a common subdivision of hinged dissections. Using claim 7, there is a further subdivision that results in continuous, non-self-intersecting motion. _\square

General case of nn polygons

To extend to nn polygons for dissection, we can simply overlay the dissections and move the numerous pieces around, as an extension of claim 1.
Unfortunately for hinged dissections, the main challenge is in figuring out a combination technique that works. This can be done using further machinery that refines the idea in claim 6 to more general structures. Complete details are available in the paper.

Points to ponder

  1. Is there an easier approach to the dissection of 2 polygons?
  2. Why does introducing hinges make the problem much more difficult?
  3. The claims work by allowing for a lot of extra pieces to allow for the movement of pieces. In the gif, the hinged dissection from an equilateral triangle to a square only uses 4 pieces as it doesn't follow the procedure outlined in the claims. Can we do better than 8 pieces for a hinged dissection from the square to the hexagon?
  4. In the gif, we used different hinged dissections to go from the triangle to the square then to the hexagon. Accordingly to the general case, there is a single hinged dissection that would work for all 3 shapes. Can you find it?
  5. The 3D case for dissections is known as Hilbert's third problem. We can dissect polyhedra of equal volume into identical parts if and only if they have the same Dehn invariant. What about hinged dissections?

Interested in geometry? Hinged dissections are pretty advanced, but our Outside the Box Geometry course has some fun problems that will get your creativity flowing.

Note by Calvin Lin
2 years, 9 months ago

No vote yet
1 vote

  Easy Math Editor

This discussion board is a place to discuss our Daily Challenges and the math and science related to those challenges. Explanations are more than just a solution — they should explain the steps and thinking strategies that you used to obtain the solution. Comments should further the discussion of math and science.

When posting on Brilliant:

  • Use the emojis to react to an explanation, whether you're congratulating a job well done , or just really confused .
  • Ask specific questions about the challenge or the steps in somebody's explanation. Well-posed questions can add a lot to the discussion, but posting "I don't understand!" doesn't help anyone.
  • Try to contribute something new to the discussion, whether it is an extension, generalization or other idea related to the challenge.
  • Stay on topic — we're all here to learn more about math and science, not to hear about your favorite get-rich-quick scheme or current world events.

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold

- bulleted
- list

  • bulleted
  • list

1. numbered
2. list

  1. numbered
  2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1

paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
    # 4 spaces, and now they show
    # up as a code block.

    print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in \( ... \) or \[ ... \] to ensure proper formatting.
2 \times 3 2×3 2 \times 3
2^{34} 234 2^{34}
a_{i-1} ai1 a_{i-1}
\frac{2}{3} 23 \frac{2}{3}
\sqrt{2} 2 \sqrt{2}
\sum_{i=1}^3 i=13 \sum_{i=1}^3
\sin \theta sinθ \sin \theta
\boxed{123} 123 \boxed{123}

Comments

Sort by:

Top Newest

Whoa, this is really cool... Thanks for posting... I love the graphic!

Geoff Pilling - 2 years, 9 months ago

Log in to reply

Calvin, do you know Sam Loyd? In his book, more mathematicals puzzles of Sam Loyd (Volumen ...), there is a problem (1.18). It is possible to cut the "crescent" moon in six parts to form a "perfect" Greek cross.

P.S.- Great graphics!

Guillermo Templado - 2 years, 9 months ago

Log in to reply

Ah yes, I love Sam Loyd's books. Back when I was a teenager, I would devour them and very often got stumped on the problems.

Here is the problem from Amazon's preview:

Calvin Lin Staff - 2 years, 9 months ago

Log in to reply

Yes, that is the problem, very good, what do you think about the solution?

Guillermo Templado - 2 years, 9 months ago

Log in to reply

@Guillermo Templado IIRC it was insane. I had no idea how to get it to 6 parts. I managed to do it with a lot of parts, by looking at the tessellation of the cross and of the crescent.

Calvin Lin Staff - 2 years, 9 months ago

Log in to reply

@Calvin Lin I didn't do it . It was a madness... In your book, do you have the proof? I would made a copy or a picture or a photograph of the proof, but I can't publish it, here. For tessellations and mosaics, I recommend two examples, Escher and Alhambra de Granada .

PS.- If someone likes spanish guitar, listen to this Recuerdos de la Alhambra and the speed of his fingers at the right hand...

Guillermo Templado - 2 years, 9 months ago

Log in to reply

The .gif animation above reminds me how Sherlock solves cases using the method of loci.

Swapan Bagchi - 2 years, 9 months ago

Log in to reply

Just joining the meaningless pieces of the case to one meaningful conclusion.

Swapan Bagchi - 2 years, 9 months ago

Log in to reply

×
