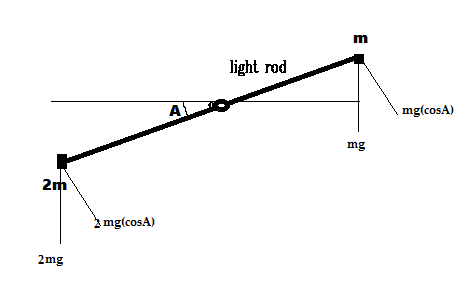

Here's the question.......Two point masses m and 2m are attached at each end of a light rod. The rod is pivoted at the center and is free to move in a vertical plane. Then find the angle "A" when the system is in equilibrium position. And feel free to consider any additional information, you think I forgot to mention.

My doubt goes like this......the gravitational force will be more on its left arm than that of right and hence the torque. So what I think is the rod should attain vertical position with the mass "2m" at the bottom. But that ain't what happens. Tell me where I'm wrong.

Note by Shantanu Lautre
3 years, 5 months ago

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold
- bulleted- list
• bulleted
• list
1. numbered2. list
1. numbered
2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in $$...$$ or $...$ to ensure proper formatting.
2 \times 3 $$2 \times 3$$
2^{34} $$2^{34}$$
a_{i-1} $$a_{i-1}$$
\frac{2}{3} $$\frac{2}{3}$$
\sqrt{2} $$\sqrt{2}$$
\sum_{i=1}^3 $$\sum_{i=1}^3$$
\sin \theta $$\sin \theta$$
\boxed{123} $$\boxed{123}$$

Sort by:

This is an excellent question. Before giving an answer I would first ask you to perform the same experiment with a pencil (one that has not got its writing end sharpened). Place its midpoint on your finger and you will be able to balance it. Now stick a chewing gum at one end and observe that it topples. So see, your explanation regarding equilibrium at the vertical position works perfectly in this case. Then why not the common balance? The answer lies in its construction. In a common balance, weights don't stick to the two ends (like what you may call a mass dipole). They hang from the two ends. This makes the center of mass of the whole system somewhat below its center of rotation. And since common balances are in translational equilibrium, we are only to calculate the torque about the center of mass to study the system's rotation. Here, you were calculating the torque about the center of rotation, where lies the fallacy. Observe, that when both the ends have equal weights hanging from them, center of mass lies on the vertical line below the center of rotation. But once you hang two different weights from two ends, the center of mass shifts from the vertical line, towards the mass which is heavier. Now if you calculate the torque about this shifted center of mass, you will see that what happens in real life is perfectly normal and the tilted position of the balance that you have drawn is the equilibrium position. For further reference see my post on the physical balance problem. hope this helped you.
