Help Needed here

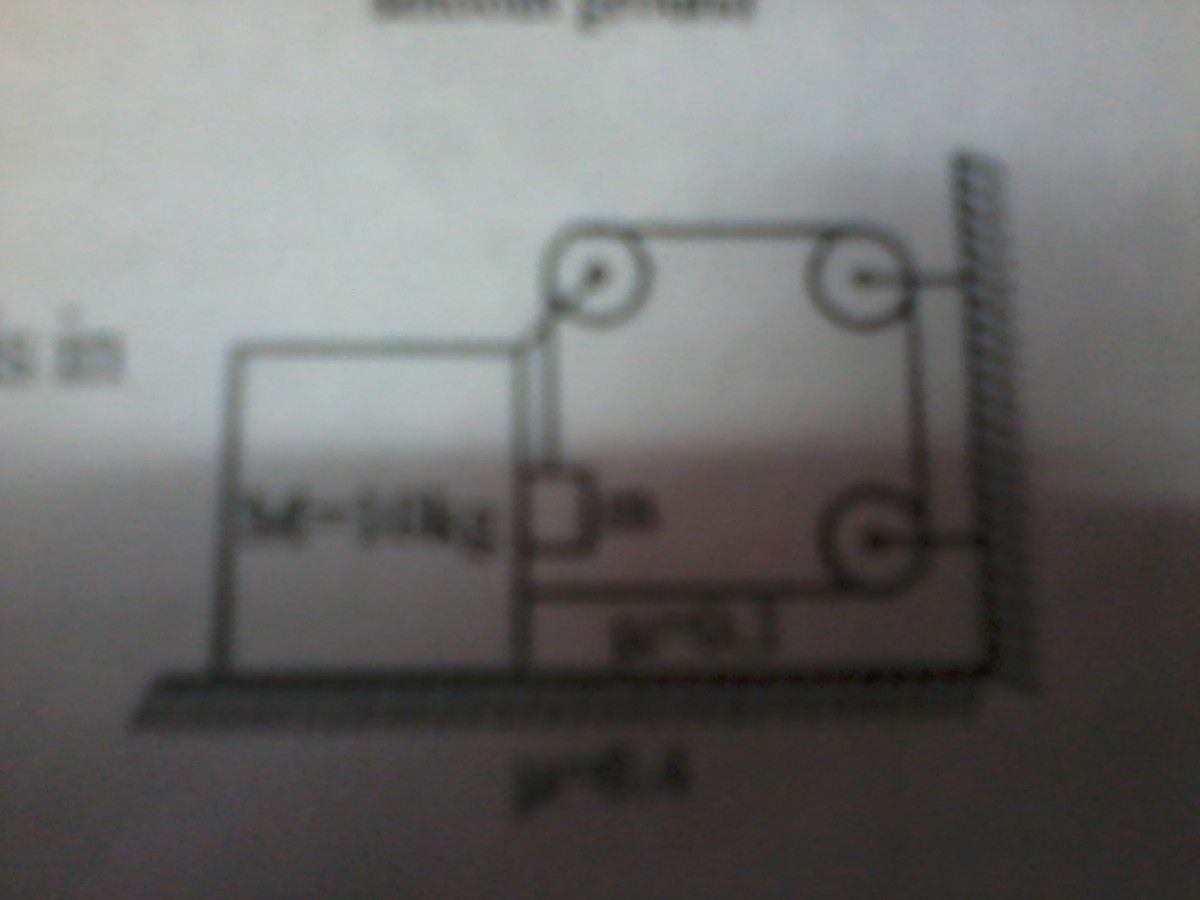

1) An arrangement of pulley block system is shown above. The bigger block has mass \(10\) kg and smaller block has mass \(m\) kg. The coefficient of friction between the blocks is \(0.1\). and the coefficient of friction between the block and the ground is \(0.4\). Find the maximum value of \(m\) in kg so that the arrangement is in equilibrium.

2) A rope of length \(L\) and mass \(M\) is being pulled on a rough horizontal floor by a constant horizontal force \(F=Mg\). The force is acting at one end of the rope in the same direction as the length of the rope. The coefficient of kinetic friction between rope and floor is \(\frac{1}{2}\). Then the tension at the mid point of the rope is

Note by Tanishq Varshney
2 years, 7 months ago

No vote yet
1 vote

  Easy Math Editor

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold

- bulleted
- list

  • bulleted
  • list

1. numbered
2. list

  1. numbered
  2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1

paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
    # 4 spaces, and now they show
    # up as a code block.

    print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in \( ... \) or \[ ... \] to ensure proper formatting.
2 \times 3 \( 2 \times 3 \)
2^{34} \( 2^{34} \)
a_{i-1} \( a_{i-1} \)
\frac{2}{3} \( \frac{2}{3} \)
\sqrt{2} \( \sqrt{2} \)
\sum_{i=1}^3 \( \sum_{i=1}^3 \)
\sin \theta \( \sin \theta \)
\boxed{123} \( \boxed{123} \)

Comments

Sort by:

Top Newest



Link if image not visible here

Kushal Patankar - 2 years, 7 months ago

Log in to reply



Saurabh Patil - 2 years, 7 months ago

Log in to reply

if it was asked to find the tension at any distance \(x\) then we have integrate?? plz reply

Tanishq Varshney - 2 years, 7 months ago

Log in to reply

Thanks for the the sourabh \(\ddot \smile\)

Tanishq Varshney - 2 years, 7 months ago

Log in to reply

No, actually don't need to .

Saurabh Patil - 2 years, 7 months ago

Log in to reply

@Saurabh Patil Actually the friction force heredosen't at all act as variable force and as we draw a FBD we see no variable force acting on the system (rope+earth)

Saurabh Patil - 2 years, 7 months ago

Log in to reply

About the second problem may i speak something?

Saurabh Patil - 2 years, 7 months ago

Log in to reply

yes surely

Tanishq Varshney - 2 years, 7 months ago

Log in to reply

how do i post an image? I have solved the second problem

Saurabh Patil - 2 years, 7 months ago

Log in to reply

@Saurabh Patil Dont know may be satvik knows

Tanishq Varshney - 2 years, 7 months ago

Log in to reply

@Tanishq Varshney First upload the picture on imgur. And then type this --

! [img] (url of the image) Without spaces.

Satvik Pandey - 2 years, 7 months ago

Log in to reply

@Satvik Pandey Thanks for telling the steps to upload image bro....!!!!.

Saurabh Patil - 2 years, 7 months ago

Log in to reply

@Saurabh Patil You are welcome! :)

Satvik Pandey - 2 years, 7 months ago

Log in to reply

Are you guys fine? A massive earthquake has been experienced in large parts of Northern India.

Satvik Pandey - 2 years, 7 months ago

Log in to reply

I got up late in the morning so i don't have any idea of the tremors. XD

Tanishq Varshney - 2 years, 7 months ago

Log in to reply

Did you sleep till 12 noon? :P

Satvik Pandey - 2 years, 7 months ago

Log in to reply

@Satvik Pandey nope Till 11. :P

Tanishq Varshney - 2 years, 7 months ago

Log in to reply

@Tanishq Varshney The Earthquake was experienced at 11:46 AM. I was going through Saurabh's solution at that time.

I found a method to solve that question by using calculus.

Satvik Pandey - 2 years, 7 months ago

Log in to reply

@Satvik Pandey Do we really need to solve that question using calculus when we can use the newton laws directly??

Saurabh Patil - 2 years, 7 months ago

Log in to reply

@Saurabh Patil We can use Newton's Law directly. There is no problem. It's just another way of solving the same question.



Applying Newton's law on \( \Delta y\) we get--

\(T(y)-T(y+\Delta y)-\mu \frac { M }{ L } \Delta y=\frac { M }{ L } \Delta y\frac { g }{ 2 } \)

\(lim\quad \Delta y\rightarrow 0\frac { T(y+\Delta y)-T(y) }{ \Delta y } =-\frac { Mg }{ L } \)

\(\frac { dT(y) }{ dy } =-\frac { Mg }{ L } \)

\(\int _{ T(0) }^{ T(L/2) }{ dT(y) } =\int _{ 0 }^{ L/2 }{ -\frac { Mg }{ L } } \) dy

\(T(0)=Mg\)

So \(T\left( \frac { L }{ 2 } \right) -T(0)=-\frac { Mg }{ 2 } \)

On putting the value of \(T(0)\)

we get \(T\left( \frac { L }{ 2 } \right) =\frac { Mg }{ 2 } \)

But I must say that Saurabh's method is better that this.

Satvik Pandey - 2 years, 7 months ago

Log in to reply

@Saurabh Patil Hey @Saurabh Patil and @satvik pandey can i have ur views on this

Tanishq Varshney - 2 years, 7 months ago

Log in to reply

@Tanishq Varshney Sorry bro, I am not very good in Maths. :(

Satvik Pandey - 2 years, 7 months ago

Log in to reply

Looks like I m late

Kushal Patankar - 2 years, 7 months ago

Log in to reply

Hey check out this problem

Tanishq Varshney - 2 years, 7 months ago

Log in to reply

I got that. I solved it by using concept of pseudo force.

Satvik Pandey - 2 years, 7 months ago

Log in to reply

DO reply if u liked the problem.

Tanishq Varshney - 2 years, 7 months ago

Log in to reply

@Tanishq Varshney I like your problems! :)

I recently saw your this problem. Is \( \mu\) coefficient of friction between A and B or B and C? Is block A fixed or movable? ??

Satvik Pandey - 2 years, 7 months ago

Log in to reply

yup i also did that using the concept of pseudo force , u should now try this one

Tanishq Varshney - 2 years, 7 months ago

Log in to reply

@Tanishq Varshney I haven't studied Oscillations till now. :(

Satvik Pandey - 2 years, 7 months ago

Log in to reply

Thank you guyz means a lot.

Tanishq Varshney - 2 years, 7 months ago

Log in to reply

Its our pleasure Right satvik pandey ???!!!

Saurabh Patil - 2 years, 7 months ago

Log in to reply

Yeah! sure!

Satvik Pandey - 2 years, 7 months ago

Log in to reply

If you know the answer then please post it.

Satvik Pandey - 2 years, 7 months ago

Log in to reply

ok answer are 1) 2.5 kg and 2) \(\frac{Mg}{2}\)

Tanishq Varshney - 2 years, 7 months ago

Log in to reply

I got 1st one. Wait I am posting. :)

Satvik Pandey - 2 years, 7 months ago

Log in to reply

@satvik pandey @Kushal Patankar @Abhineet Nayyar plz post a solution

Tanishq Varshney - 2 years, 7 months ago

Log in to reply



From the FBD of block of mass \(m\)

The block will be at rest if

\(T+f_{2}=mg\)

But there is a horizontal force acting on the block. If the block has to be at rest then \(N=0\) So \(f_{2}=0\)

So \(T=mg\)

Now only horizontal force acting on block of mass \(M\) is \(f_{1}\) and \(T\)

So \(T=f_{1}\)

So \(mg=f_{1}\)

As the friction is static so it can have variable magnitude. The value of m will be maximum when \(f_{1}\) is maximum. And the limiting value of f1 is \(\mu N_{0}\). No force is acting in vertical direction other than Normal reaction from ground and Mg. So \(N_{0}=Mg\)

So the value of m will be maximum when \(mg=\mu Mg\). Just put the values. You will get the answer. :)

Satvik Pandey - 2 years, 7 months ago

Log in to reply

Hi satvik, You missed two forces i.e. tension forces on the 10 kg block, one downward and other rightwards . They are acting on clamped pulley, and should be included in fbd, because clamped pulley is part of 10kg mass.

Kushal Patankar - 2 years, 7 months ago

Log in to reply

Hi Kushal. Thanks for pointing the mistake. I made a blunder mistake is a hurry. :( Also I substituted the wrong value of \(\mu=1/4\) that's why the the answer came out to be 2.5 kg. :(

Satvik Pandey - 2 years, 7 months ago

Log in to reply

but u get 4kg from here but the answer is 2.5 kg

Tanishq Varshney - 2 years, 7 months ago

Log in to reply

yup i missed that thing that no horizontal force will act on the the block m , i ended up on thinking how to find \(N\), any ways thanx a lot, what about the second

Tanishq Varshney - 2 years, 7 months ago

Log in to reply

I am trying second one. :)

Satvik Pandey - 2 years, 7 months ago
