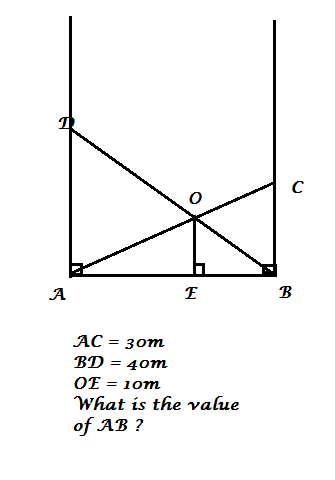

Guys please help me with this problem... I've been eating my head off but cannot solve this problem. I used similarity and tried finding the values of AD and BC bt im left with a bi-quadratic equation y^4 - 20y^3 + 700y^2 - 14000y + 70000 = 0 where y = BC Please help. Thank you

Note by Sagnik Saha
4 years, 10 months ago

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold
- bulleted- list
• bulleted
• list
1. numbered2. list
1. numbered
2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in $$...$$ or $...$ to ensure proper formatting.
2 \times 3 $$2 \times 3$$
2^{34} $$2^{34}$$
a_{i-1} $$a_{i-1}$$
\frac{2}{3} $$\frac{2}{3}$$
\sqrt{2} $$\sqrt{2}$$
\sum_{i=1}^3 $$\sum_{i=1}^3$$
\sin \theta $$\sin \theta$$
\boxed{123} $$\boxed{123}$$

Sort by:

Here's one approach. Note that:

$\frac{OE}{BC} = \frac{AE}{AB}, \ \frac{OE}{AD} = \frac{EB}{AB} \implies \frac{OE}{BC} + \frac{OE}{AD} = 1.$

If we denote $$x=AB$$, then this gives $$\frac{10}{\sqrt{30^2 - x^2}} + \frac{10}{\sqrt{40^2 - x^2}} = 1$$. You'll probably still get a quartic equation, but at least all terms are even powers of $$x$$ so you can substitute $$u = x^2$$ and solve there.

[ Edit: actually this doesn't seem to work since you still get a quartic equation in $$u$$ after expansion. ]

- 4 years, 10 months ago

According to what I have calculated, AB=28.5 m.

First we will use C Lim's approach.

OE/BC = OA/AC ---------------(3)

OE/AD + OE/BC = OB/BD + OA/AC

1 = OB/40 + OA/30 [From --------(1) and putting the values of BD and AC]

Solving further, we get an equation,

120=3(OB) +4(OA) --------------(4)

Now, ODA is similar to OBC, which gives us,

OD/OC = OB/OA

(BD-OB)/(AC-OA) = OB/OA

(40-OB)/(30-OA) = OB/OA

Solving further, we get, 4(OA) = 3(OB) --------------(5)

From (4) and (5), we get OA=15 m and OB=20 m.

Now, using pythagoras theorem in triangles OEA and OEB, we get

EA = 5 root5 m and EB = 10 root3 m.

AB = EA +EB = 5 x 2.236 + 10 x 1.732 = 28.5 m

- 4 years, 4 months ago

There is no way to get a nice exact solution for this problem. Values were poorly chosen. Your equation is correct. The correct result is close to AB = 26.

They probably wanted AB = 24, AD = 32, BC = 18, but messed up by the choice of OE.

It is hard to choose 3 integer values for AC, BD and OE so that AB is integer. I can't find anything better than: BD = 119 AC = 105 OE = 30

- 4 years, 10 months ago

you should have assumed the sides as integers.i know it's a guess but worth trying.if you assume them as integers then you can easily conclude that the answer is 24

- 4 years, 10 months ago

how do u conclude? please elaborate a little. thank u

- 4 years, 10 months ago
