Lenz's Law

I'm having trouble understanding the explanation given to me for this question. Would someone please be able to tell me the answer with a detailed explanation? Thanks in advance.

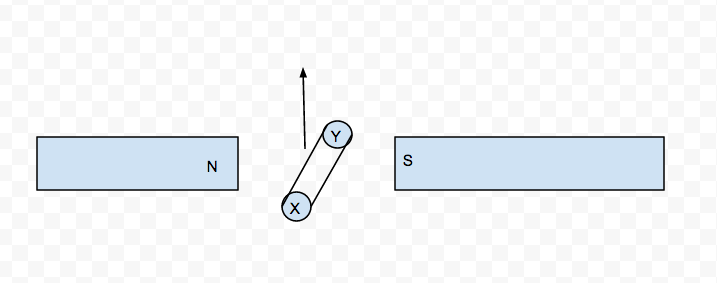

A solid metal rod is moved vertically up through two permanent magnets as show. Which end of the rod is negative? (and why)

Note by Felix Haydock
3 years, 10 months ago

No vote yet
1 vote

  Easy Math Editor

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold

- bulleted
- list

  • bulleted
  • list

1. numbered
2. list

  1. numbered
  2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1

paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
    # 4 spaces, and now they show
    # up as a code block.

    print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in \( ... \) or \[ ... \] to ensure proper formatting.
2 \times 3 \( 2 \times 3 \)
2^{34} \( 2^{34} \)
a_{i-1} \( a_{i-1} \)
\frac{2}{3} \( \frac{2}{3} \)
\sqrt{2} \( \sqrt{2} \)
\sum_{i=1}^3 \( \sum_{i=1}^3 \)
\sin \theta \( \sin \theta \)
\boxed{123} \( \boxed{123} \)

Comments

Sort by:

Top Newest

Using Right Hand Palm Rule: Thumb points up, fingers point towards south, resulting force on positive charges is towards Y. Therefore X is negative.

Check using Lenz's Law: Induced current should oppose the original movement.

To check, use Right Hand Palm Rule: Thumb points towards Y (direction of movement of positive charges) fingers point towards south (the direction of the existing field) palm points down (direction of force). This force opposes the original motion of the rod.

Scott Taylor - 3 years, 5 months ago
