# Mechanism Challenge - 2

The second challenge of what might become a weekly segment.

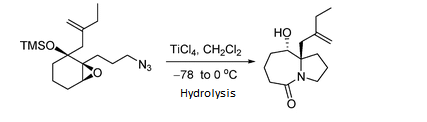

Consider the following conversion:

Account for the stereochemistry in your mechanism. A mechanism can be either hand drawn or made using an online web tool. An answer will be provided in 72 hours (or earlier) if no one can provide a suitable mechanism.

Note by Vitthal Yellambalse
4 years, 2 months ago

This discussion board is a place to discuss our Daily Challenges and the math and science related to those challenges. Explanations are more than just a solution — they should explain the steps and thinking strategies that you used to obtain the solution. Comments should further the discussion of math and science.

When posting on Brilliant:

• Use the emojis to react to an explanation, whether you're congratulating a job well done , or just really confused .
• Ask specific questions about the challenge or the steps in somebody's explanation. Well-posed questions can add a lot to the discussion, but posting "I don't understand!" doesn't help anyone.
• Try to contribute something new to the discussion, whether it is an extension, generalization or other idea related to the challenge.

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold
- bulleted- list
• bulleted
• list
1. numbered2. list
1. numbered
2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in $$ ... $$ or $ ... $ to ensure proper formatting.
2 \times 3 $2 \times 3$
2^{34} $2^{34}$
a_{i-1} $a_{i-1}$
\frac{2}{3} $\frac{2}{3}$
\sqrt{2} $\sqrt{2}$
\sum_{i=1}^3 $\sum_{i=1}^3$
\sin \theta $\sin \theta$
\boxed{123} $\boxed{123}$

Sort by:

Consider the reactant, it contains two oxygen atoms (a great target for $TiCl_{4}$). We encounter the first question : Which one does it choose?

The oxygen atom (circled in blue) is much more open to attack when compared to the other (circled in red) which is bonded to a bulky silane group. With the first question out of the way we draw the first precursor :

The next step is quite simple, Silicon has a greater affinity for chlorine than titanium, however the Oxygen atom (circled in red) stopped it from reacting with it. Now that a charged system exists in the lower half, a chloride transfer occurs. This also helps in increasing the bond strength between Titanium and Oxygen (in blue) because of Titanium's increased Lewis acidity.

Again, the structure of the second precursor makes it evident to the reader. The negative charge shifts to form a carbonyl group. During the process the allyl system shifts and attacks the weakened epoxide system in an $S_{N}2$ manner to generate the third precursor :

The next step is hydrolysis. Before we continue with the organic reaction we mustn't forget about by-products. The following side reaction occurs because $SiMe_{3}$ is much smaller than the organic substrate:

$2SiMe_{3}Cl + H_{2}O \longrightarrow SiMe_{3}OSiMe_{3} + 2HCl$

With the aqueous hydrochloric acid, the Titanium substrate is removed. The molecule has been rotated using an axis parallel to the plane of the screen:

Again, don't forget about the by-products. This side reaction occurs simultaneously with the organic reaction given below.

$TiCl_{4} + 2H_{2}O \longrightarrow TiO_{2} + 4HCl$

Now protonation of the carbonyl group occurs, this increases the positive charge on the carbonyl system's carbon atom allowing the negatively charged Nitrogen atom in the azide system to attack it. One might assume that water would have already attacked the azide system to generate a substituted hydroxyl-amine, but this doesn't happen. The azide group can be considered as a bar of electrons that are inaccessible to many substrates, the protonation of the carbonyl system activates the electrophile allowing the azide system to attack.

A keen reader would now realise that the next step is the final one. The "carbonyl" oxygen atom pushes it's electrons back into the system to shift the bridging bond to the nitrogen atom. To complete its octet it expels thermodynamically stable nitrogen gas.

When redrawn we see that the stereochemistry has been accounted for in the mechanism.

- 4 years, 2 months ago

As usual , awesome!!!

- 4 years, 2 months ago

Nice one!! I missed the fact that the azide ion will not get hydrolysed, and ended up with a different mechanism

- 4 years, 2 months ago

woah ! that's not easy ! at first glance i knew that ticl4 was gonna attack blue O, and also knew about tmso as i have earlier studied the tms group while studying the back bonding and exceptional hybridisation in tms(amine) (it aroused my interest in the tms group) ,but it's stereochemistry that's over my head !

- 4 years, 2 months ago

Bro! @Vitthal Yellambalse we are confined with syllabus of JOE ADVANCED , so we don't seem to know every reagent and mechanisms but we would like to try ....

You can help us by mentioning some of the different names of the reactions and cyclisations that we may learn 1st ( If we don't know and then apply!) That are part of this mechanism .

- 4 years, 2 months ago

I understood that. That's why this particular problem contains reactions that do not exceed the JEE advanced level. If it still seems difficult here is a hint : $TiCl_{4}$ is a catalyst and TMS is $Si{Me}_{3}$.

- 4 years, 2 months ago

So that give me confidence that this dont contain high level stuff so now i can try it :)

- 4 years, 2 months ago

The stereochemistry is bothering me :(

- 4 years, 2 months ago

Even if you didn't account for it post a mechanism. You might have gotten it right!

- 4 years, 2 months ago

IMG20170221173525.jpg The feasibility of each step is for the reader to ponder about :p

- 4 years, 2 months ago

You are very close. The only issue is that there is no nitrene intermediate and that hydrolysis occurs much before than you think.

- 4 years, 2 months ago

My second attempt at a mechanism (First few steps as mentioned above )(edit 2)


This time I could take care of the Stereochemistry Hopefully I am closer now :p

- 4 years, 2 months ago

Think again, you are getting really close now. Remember that $TiCl_{4}$ is a catalyst.

- 4 years, 2 months ago

Hmm I think I get your point. I have made a few corrections here and there .

- 4 years, 2 months ago

The first half of your mechanism is spot on, but both the initial and edited second halves are not correct.

- 4 years, 2 months ago

Will think again and let you know :p

- 4 years, 2 months ago

Just don't take too long. I will post the answer in 11 hours and 38 minutes.

- 4 years, 2 months ago

I have edited my mechanism. This looks much better than my initial mechanism :p . Although i havent changed the way the stereochemistry is accoounted for.

- 4 years, 2 months ago
