Spring Potential Energy Problem

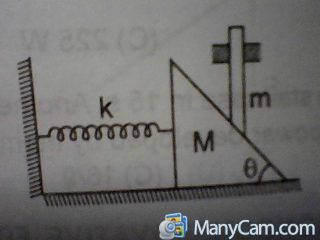

A wedge of mass M fitted with a spring of stiffness 'k' is kept on a smooth horizontal surface. A rod of mass m is kept on the wedge as shown in the figure. System is in equilibrium. Assuming that all surfaces are smooth, the potential energy stored on the spring is:

A)\[\frac{mg^2tan^2\theta}{2k}\] B)\[\frac{m^2gtan^2\theta}{2k}\] C)\[\frac{m^2g^2tan^2\theta}{2k}\] D)\[\frac{m^2g^2tan^2\theta}{k}\]

Note by Shubham Srivastava
4 years, 7 months ago

No vote yet
8 votes

  Easy Math Editor

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold

- bulleted
- list

  • bulleted
  • list

1. numbered
2. list

  1. numbered
  2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1

paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
    # 4 spaces, and now they show
    # up as a code block.

    print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in \( ... \) or \[ ... \] to ensure proper formatting.
2 \times 3 \( 2 \times 3 \)
2^{34} \( 2^{34} \)
a_{i-1} \( a_{i-1} \)
\frac{2}{3} \( \frac{2}{3} \)
\sqrt{2} \( \sqrt{2} \)
\sum_{i=1}^3 \( \sum_{i=1}^3 \)
\sin \theta \( \sin \theta \)
\boxed{123} \( \boxed{123} \)

Comments

Sort by:

Top Newest

Make free body diagram of forces on both the blocks one by one. For wedge of mass M the forces acting along the floor are N sinθ (normal reaction from block of mass m) and kx. Next, make free body diagram of block of mass m. Forces acting on it perpendicular to the floor are N cosθ and mg. Solving these equations

Nsinθ = kx,

Ncosθ = mg,

We get the value of x, hence value of potential energy can be evaluated.

Lokesh Sharma - 4 years, 7 months ago

Log in to reply

c

Vijay Sakhamudi - 4 years, 7 months ago

Log in to reply

Solution????

Shubham Srivastava - 4 years, 7 months ago

Log in to reply

Start with determining the state of spring at equilibrium. Should it be compressed or stretched to keep the system at equilibrium?

Pranav Arora - 4 years, 7 months ago

Log in to reply

make forces acting on M, weight of m & a force F which is acts opposite to spring force to keep system is in equilibrium. then \Tan\theta\ = F\mg. from this find out F and substituted in P.E = F*2\ 2K get the ans... (C) is correct

Srinivas Santoshi - 4 years, 7 months ago

Log in to reply

My attitude towards the problem is this: The weight, mg, of the rod will have 2 components- mgsin0 and mgcos0. The component, mgcos0, can be again resolved into two vectors having a horizontal component, mgcos0sin0. For equilibrium, the spring force should be equal to horizontal force. Therefore, mgcos0sin0= kx. We can now substitute value of x from this equation in the equation for spring potential energy, i.e., 0.5kx^2.

Shubham Srivastava - 4 years, 7 months ago

Log in to reply

I fear your reasoning is not accurate. You are making components of components. This is probably wrong way and you will get the wrong answer I think.

Lokesh Sharma - 4 years, 7 months ago

Log in to reply

mgcos0 (0 to be read as theta) is not a component but the normal reaction of m on M... So there are two forces on M....one is the spring force kx which is horizontal and towards right...and the other is the normal reaction of m on M which towards left, and downwards making an angle of (ninty - theta) with the horizontal...So, on resolving mgcos0 in the horizontal left direction, we get mgcos0sin0...and for M to remain in equillibrium, kx should be equal to mgcos0sin0...

so,

mgcos0sin0 = kx

x=(mgcos0sin0)/k

the potential energy stored in spring = 1/2(k . x^2)..

solvong further will give the answer... So the explanation of Shubham S is accurate....

Samarth M.O. - 4 years, 5 months ago

Log in to reply

BY DIMENSIONAL ANALYSIS IT CAN ONLY BE C OR D MOSTLY C

Vasanth Balakrishnan - 4 years, 7 months ago

Log in to reply

Mind keeping Caps Lock off. :P

Pranav Arora - 4 years, 7 months ago

Log in to reply

how can u say it is mostly c)?

Suresh Muthuraman - 4 years, 7 months ago

Log in to reply

×
