Thevenine's Theorem Problem:Need Help with illustration.

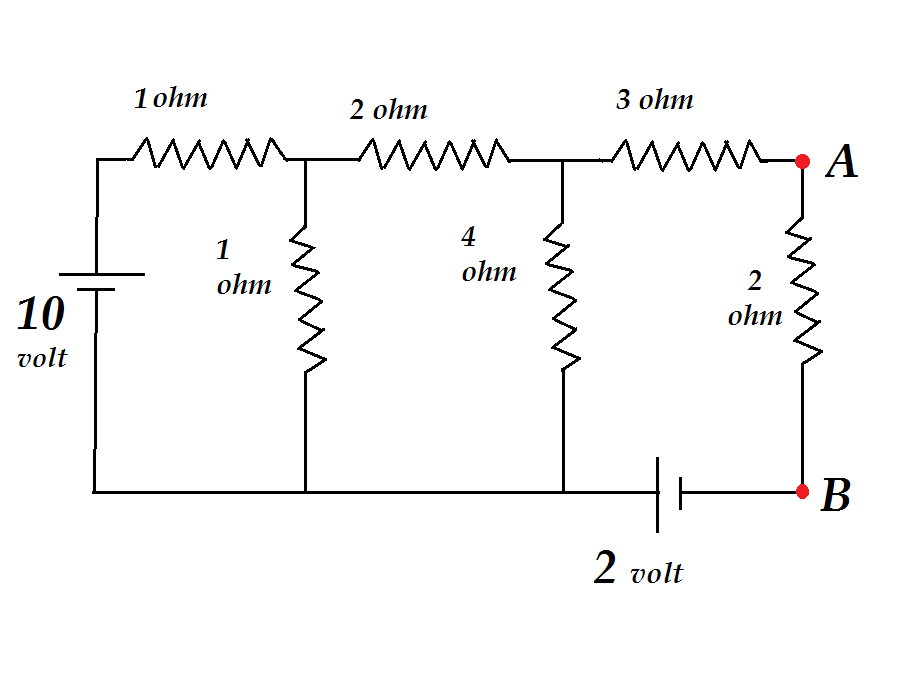

In the picture you see two points "A" and "B" ...Find the equivalent Thevenine's voltage and Equivalent Thevenine's resistance between the two points "A" and "B" and hence find the current through the 2 ohm resistance between the two points "A" and "B".... Please describe by proper picture or give me direction in such a way that it is deciphered easily..Always strictly follow thevenine's theorem...

Note by Raja Metronetizen
4 years, 1 month ago

No vote yet
1 vote

  Easy Math Editor

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold

- bulleted
- list

  • bulleted
  • list

1. numbered
2. list

  1. numbered
  2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1

paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
    # 4 spaces, and now they show
    # up as a code block.

    print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in \( ... \) or \[ ... \] to ensure proper formatting.
2 \times 3 \( 2 \times 3 \)
2^{34} \( 2^{34} \)
a_{i-1} \( a_{i-1} \)
\frac{2}{3} \( \frac{2}{3} \)
\sqrt{2} \( \sqrt{2} \)
\sum_{i=1}^3 \( \sum_{i=1}^3 \)
\sin \theta \( \sin \theta \)
\boxed{123} \( \boxed{123} \)

Comments

Sort by:

Top Newest

Basic hints :- As the 10 volt battery provides greater EMF the current will flow in the clockwise direction. Then use the junction rule and loop rule to find the equivalent resistance.

Siddharth Kumar - 4 years, 1 month ago

Log in to reply

basically ,you need to remove the resistance in between points A & B , and then find the OPEN CIRCUIT voltage across A & B...( apply kirchoff law to find V(ab) taking the extreme right loop...as no current flows in the loop,you will get a relation of (2 plus voltage across 4 ohm resistor) as your V(ab)).then find R(th) across terminals A & B.by removing all the voltage sources...then convert the given circuit into a thevenin equivalent and PRESTO!!!! now you can easily calculate the current across 2 ohm resistor...

Indraneel Sarkar - 4 years, 1 month ago

Log in to reply

give me the results to cross check it...

Raja Metronetizen - 4 years, 1 month ago
