# Unravelling an inequality problem

Let $a$ and $b$ be positive reals.

Consider all pairs of positive reals $(x,y)$ subject to

$\frac{ a}{x} + \frac{b}{y} = 1.$

What is the minimum value of

$x + y + \sqrt{ x^2 + y^2 } ?$

Some of you might recognize this problem, with the specific case of $a = 1, b = 8$.

The purpose of this note is to unravel this question, working from what has been given to try and find a logical path.

Observation 1: Recognize the final expression of $x + y + \sqrt{ x^2 + y^2 }$ as the perimeter of a right angled triangle with legs $x$ and $y$. Let's consider a right triangle with vertices $O = (0,0), X = (x,0), Y = (o,y)$.

Observation 2: The condition that $\frac{a}{x} + \frac{b}{y} = 1$ implies that the point $P = (a,b)$ lies on the line $XY$. This is the "intercept-intercept" equation of a line, which is often not taught explicitly.

Hence, we can rephrase the question as follows:

Consider all right triangles with legs on the x and y axis, and whose hypotenuse passes through the point $P = (a,b)$. Which of these triangle has the smallest perimeter?

Consider a circle $\Gamma$ that lies that passes through the point $P$, and is tangential to the x-axis and the y-axis. Specifically, if the circle has radius $r$, it has center $T = (r,r)$, and length $TP$ gives us

$(r-a) ^2 + (r-b)^2 = r^2 \Rightarrow r^2 - (2a+2b)r + (a^2+b^2) = 0.$

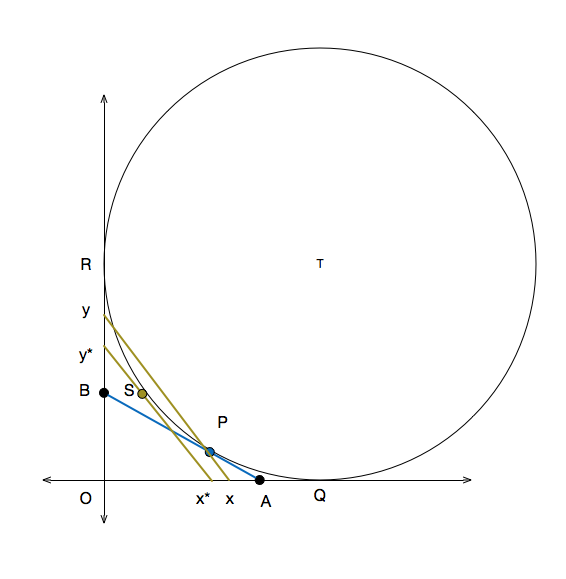

This has solutions $r = (a+b) \pm \sqrt{ 2ab }$. The solution corresponding to a minus sign would correspond to a circle whose center is "between" $O$ and $P$. The solution corresponding to the plus sign would correspond to the circle "on the other side". Let the larger circle be $\Gamma$ (see diagram below).

Claim: The triangle with minimal perimeter is tangential to $\Gamma$ at $P$.

Let's study this triangle. In the diagram, this triangle is denoted by $O A B$ (blue line). Observe that

$OA + AB + BO = OA + AP + PB + BO = OA + AQ + RB + BO = OQ + OR = 2r.$


Proof of claim: Take any other line $\ell$ (yellow line above) through $P$, which cuts the axis at $x,y$. Then, it is not tangential to $\Gamma$, hence cuts $\Gamma$ again.

Take a parallel line to $\ell$, which is tangential to $\Gamma$ at $S$, which is contained beneath $xy$. This line cuts the axis at $x^*, y^*$. Then, perimeter of $Oxy \,$ is greater than perimeter of $O x^* y^*$ (by scaling), which is equal to $OQ + OR$ (similar argument as perimeter of $OAB$), which is equal to perimeter of $O A B$.

Hence, the minimal perimeter occurs in triangle $OAB$. $_ \square$

In conclusion, the minimal value is $2[ a + b + \sqrt{2ab}]$. In the case where $a=1, b=8$, we get $2 [ 1 + 8 + \sqrt{16} ] = 26$.

Note by Calvin Lin
5 years ago

This discussion board is a place to discuss our Daily Challenges and the math and science related to those challenges. Explanations are more than just a solution — they should explain the steps and thinking strategies that you used to obtain the solution. Comments should further the discussion of math and science.

When posting on Brilliant:

• Use the emojis to react to an explanation, whether you're congratulating a job well done , or just really confused .
• Ask specific questions about the challenge or the steps in somebody's explanation. Well-posed questions can add a lot to the discussion, but posting "I don't understand!" doesn't help anyone.
• Try to contribute something new to the discussion, whether it is an extension, generalization or other idea related to the challenge.
• Stay on topic — we're all here to learn more about math and science, not to hear about your favorite get-rich-quick scheme or current world events.

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold
- bulleted- list
• bulleted
• list
1. numbered2. list
1. numbered
2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in $$ ... $$ or $ ... $ to ensure proper formatting.
2 \times 3 $2 \times 3$
2^{34} $2^{34}$
a_{i-1} $a_{i-1}$
\frac{2}{3} $\frac{2}{3}$
\sqrt{2} $\sqrt{2}$
\sum_{i=1}^3 $\sum_{i=1}^3$
\sin \theta $\sin \theta$
\boxed{123} $\boxed{123}$

Sort by:

Let $a$ and $b$ be positive reals.

Consider all pairs of positive reals $(x,y)$ subject to

$\frac{ a}{x} + \frac{b}{y} = 1.$

What is the range of values of

$x + y - \sqrt{ x^2 + y^2 } ?$

Staff - 5 years ago

is it always greater than 0 ? without an upper bound ? ....... maybe its the variant of triangle inequality.

- 4 years, 10 months ago

Beautiful.

- 5 years ago

@Calvin Lin How do you justify that the circle must be tangent to the line at $(a,b)$ and not any other point [since while calculating the value of $r$ you have taken the distance from the point $(a,b)$] ?

Also, I have figured out something that might be useful to solve this and your follow up question and can be thought about independently too. However, can you help me since I'm stuck.

Problem 1
Again, we set up the coordinates as done by Sir Calvin and mark all points on the Cartesian Plane.
Now, consider the formula for ex-radius of a triangle,

$R_{A}=\frac{\Delta}{s-a}$
(where $R_{A}$ is the ex-radius opposite to vertex A, $\Delta$ is the area of the triangle and $s$ is its semi perimeter.)

also, given expression to minimize is

$x+y+\sqrt{x^2+y^2}$

$=\frac{2xy}{x+y-\sqrt{x^2+y^2}}$

$=2R_{o}$

Now the question is to minimize the ex-radius of the triangle. Clearly, its center must be at $(R_{o},R_{o})$, so that it is tangent to the coordinate axes (by definition of the ex-circle). It also has to be tangent to the line (from outside the triangle) again by the definition of the ex-circle.

However, I can't reason out why the extremum will be achieved when the ex-circle is tangent at the point $(a,b)$ and why will it be the minimum value ?

Problem 2
Again, we set up the coordinates as done by Sir Calvin and mark all points on the Cartesian Plane.
Now, consider the formula for in-radius of a triangle,

$r=\frac{\Delta}{s}$

also, given expression is

$x+y-\sqrt{x^2+y^2}$

$=\frac{2xy}{x+y+\sqrt{x^2+y^2}}$

$=2r$

Now the question is to find the range of the in-radius of the triangle. Clearly, its center must be at $(r,r)$, so that it is tangent to the coordinate axes (by definition of the in-circle). It also has to be tangent to the line (from inside the triangle) again by the definition of the in-circle.

And again I face the same problem.

I'll be glad if you'd help me out. Thanks!

- 5 years ago

I've edited the claim to clarify that it is tangential at $P$. The proof of the claim is below the image.

Nice way to recognize that the relevant quantity is the inradius. Now, you will need to relate it to a similar claim (albeit for a maximum and for a minimum).

Staff - 5 years ago

Good Observation and Solution. I never thought this way.

- 5 years ago

And of course, this problem was set up knowing these facts, and then engineering it to obscure the setup.

Staff - 5 years ago

Could you please explain why minus sign ( from the value of r that we get from solving quadratic) didn't satisfy this problem ?

- 4 years, 12 months ago

The line $y = x$ is the angle bisector of $BOA$. There are 2 circles which satisfy the conditions of tangency, namely the incircle and the excircle opposite $O$. The smaller radius corresponds to the incircle, which we do not want, because it didn't satisfy the condition of being outside / on the other side.

Staff - 4 years, 12 months ago

Am I wrong if I say $\dfrac{X}{a} + \dfrac{Y}{b}=1$ with a, the x-intersect,..b, the y-intersect ?
OR is it $\dfrac{a}{X} + \dfrac{b}{Y}=1$ ?

- 5 years ago

Note that the notation used in the question is not the standard variables that you use in an equation.

In particular, the point that lies on the line is $(a,b)$ (and not $(x,y)$ ), and the x-intercept is $x$ (and not $a$), and the y-intercept is $y$ (and not $b$).

So, you have the right idea, but just need to check the variables accordingly.

Staff - 5 years ago

Thanks. I was not able to understand your notation.

- 5 years ago
