# Voltage Makes No Sense!

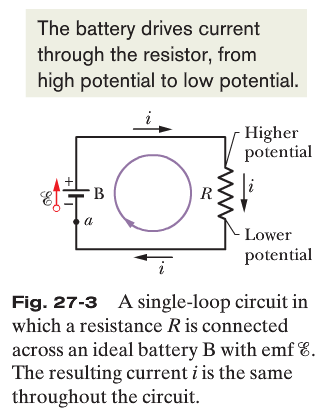

At least in circuits. Here we have a single-loop circuit:

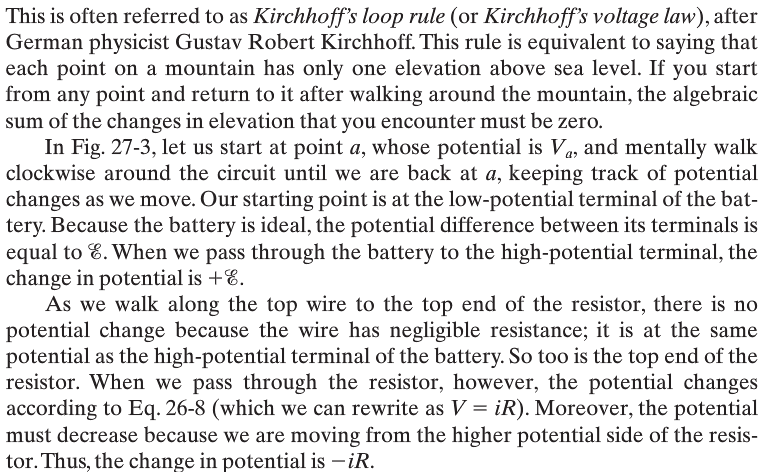

And now, we have the following description:

I really tick on the first sentence of the last paragraph. What does resistance have to do with change in potential?? When I think potential, I always think

$V=-\int{\vec { E} \cdot d\vec {s}}$

I thus visualize an electric field extended from the positive end of the battery (+ terminal) to the negative end (- terminal) - and when I visualize a flowing current, I imagine this flow being mediated by the electric field - that is, as the charge "flows," there is a definite change in potential every step of the way. If $$V$$ depends on $$s$$, then how is the potential "unchanged"?? Unless, of course, I have the entire picture wrong and there is no electric field at all.

Help is GREATLY appreciated.
