What is the charge on the capacotor?

Please help me with the problem in the image.(ignore the part written other than in english)

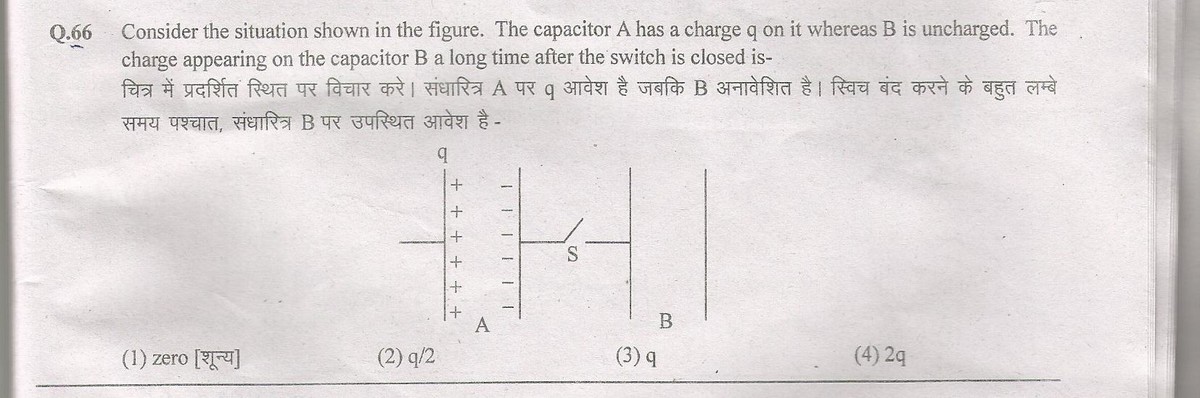

Q:Consider the situation shown in the figure. The capacitor A has a charge q on it whereas B is uncharged.The charge appearing on the capacitor B a long time after the switch is closed is:

Note by Rajath Krishna R
4 years, 4 months ago

No vote yet
1 vote

  Easy Math Editor

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold

- bulleted
- list

  • bulleted
  • list

1. numbered
2. list

  1. numbered
  2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1

paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
    # 4 spaces, and now they show
    # up as a code block.

    print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in \( ... \) or \[ ... \] to ensure proper formatting.
2 \times 3 \( 2 \times 3 \)
2^{34} \( 2^{34} \)
a_{i-1} \( a_{i-1} \)
\frac{2}{3} \( \frac{2}{3} \)
\sqrt{2} \( \sqrt{2} \)
\sum_{i=1}^3 \( \sum_{i=1}^3 \)
\sin \theta \( \sin \theta \)
\boxed{123} \( \boxed{123} \)

Comments

Sort by:

Top Newest

Ans. should be either \((1)zero\) or \((2)\frac{q}{2}\)

The negative charge \(q\) on the right capacitor plate of A is equally distributed between itself and the left plate of capacitor b. So the charge on the plate is \(-\frac{q}{2}\). The (induced)charge on the other plate=\(+\frac{q}{2}\). If the question asks for the magnitude of charge on each plate of B, ans is \((2)\frac{q}{2}\).

But if the question asks for the net charge on capacitor B, ans is zero.

Krishna Jha - 4 years, 4 months ago

Log in to reply

Yep, that's what I thought too.

Rohan Rao - 4 years, 4 months ago
