Stewart's Theorem
In geometry, Stewart's theorem yields a relation between the side lengths and a cevian length of a triangle. It can be proved from the law of cosines as well as by the famous Pythagorean theorem. Its name is in honor of the Scottish mathematician Matthew Stewart who published the theorem in 1746 when he was believed to be a candidate to replace Colin Maclaurin as Professor of Mathematics at the University of Edinburgh.
Contents
Stewart's Theorem
In \(\triangle ABC\), point \(D\) is a point on \(BC\) and \(AB=c, AC=b, BD=u, DC=v, AD=t.\) Stewart's theorem states that in this triangle, the following equation holds:
\[t^2=\frac{b^2u+c^2v}{u+v}-uv.\]
Proof by the Law of Cosines
By the law of cosines, we have \[\begin{align} b^2&=v^2+t^2-2vt\cos \theta &\qquad (1)\\ c^2&=u^2+t^2+2ut\cos \theta. &\qquad (2) \end{align}\] Now multiply (1) by \(u\) and multiply (2) by \(v\) to eliminate \(\cos \theta\): \[\begin{align} b^2u&=uv^2+ut^2-2uvt\cos \theta &\qquad (3)\\ c^2v&=u^2v+vt^2+2uvt\cos \theta. &\qquad (4) \end{align}\] Taking \((3)+(4)\) gives \[\begin{align} b^2u+c^2v&=uv(u+v)+t^2(u+v)\\ \Rightarrow t^2&=\frac{b^2u+c^2v}{u+v}-uv.\ _\square \end{align}\]
Stewart's theorem can sometimes be rewritten as \(b^2u+c^2v=(u+v)(uv+t^2)\).
Proof by the Pythagorean Theorem
The proof below assumes \( \angle B \) and \( \angle C \) are both acute and \( u < v \) as in the figure above. Then we have \[\begin{align} t^2 &= h^2 + x^2 \\ b^2 &= h^2 + (v-x)^2 \Rightarrow b^2u = h^2u + uv^2 - 2uvx + ux^2 \\ c^2 &= h^2 + (u+x)^2 \Rightarrow c^2v = h^2v + u^2v + 2uvx + vx^2, \end{align} \] which implies \[\begin{align} b^2u + c^2v &= h^2u + h^2v + uv^2 + u^2v - 2uvx + 2uvx + ux^2 + vx^2 \\ &= (u + v)(h^2 + uv + x^2) \\ &= (u + v)(t^2 + uv) \\ &= a \cdot (t^2 + uv). \ _\square \end{align} \]
Special case where \( \Delta ABC \) is Isosceles
In the case where \( \Delta ABC \) is isosceles (see figure above), Stewart's theorem has a more simplified form: \[\begin{align} a \cdot (t^2 + uv) &= b^2u + c^2v \\ &= b^2u + b^2v \\ &= b^2 (u + v) \\ &= ab^2 \\ \Rightarrow b^2 &= t^2 + uv. \end{align} \] This theorem is quite useful in calculating the length of standard cevians like median, angle bisector, etc.
Additional Problems
In triangle \(ABC\), \( \angle B = 90 ^ \circ, BE = 3, \) and \(BD = 4 \).
If \( AE = ED = DC \), then the value of \(AC\) can be expressed as \( a \sqrt{b} \), where \(a\) and \(b \) are positive integers and \(b\) is square-free.
Find \( a+b \).

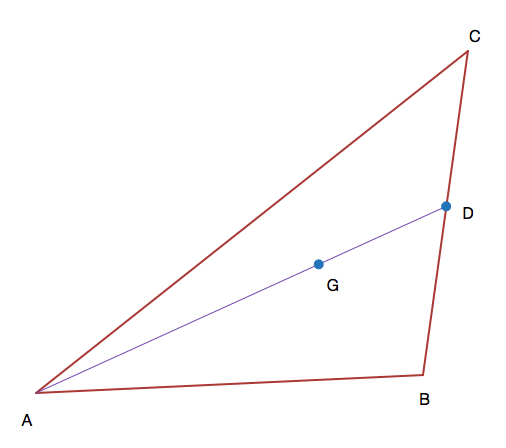

Triangle \(ABC\) with its centroid at \(G\) has side lengths \(AB=15, BC=18,AC=25\). \(D\) is the midpoint of \(BC\).
The length of \(GD\) can be expressed as \( \frac{ a \sqrt{d} } { b} \), where \(a\) and \(b\) are coprime positive integers and \(d\) is a square-free positive integer.
Find \( a + b + d + 1 \).
In \(\triangle ABC\), \(AC=BC\), point \(D\) is on \(BC\) such that \(CD=3\times BD\), and \(E\) is the midpoint of \(AD\) such that \(CE=\sqrt 7\) and \(BE=3\).
If the area of \(\triangle ABC\) is \(m\sqrt n\), where \(m\) and \(n\) are positive integers and \(n\) is square-free, find \(m+n\).
Let \(ABCD\) be a square, and let \(E\) and \(F\) be points on \(AB\) and \(BC,\) respectively. The line through \(E\) parallel to \(BC\) and the line through \(F\) parallel to \(AB\) divide \(ABCD\) into two squares and two non-square rectangles. The sum of the areas of the two squares is \(\frac{9}{10}\) of the area of square \(ABCD.\)
Find \(\frac{AE}{EB}+\frac{EB}{AE}.\)
A cyclic quadrilateral \(ABCD\) is constructed within a circle such that \(AB = 3, BC = 6,\) and \(\triangle ACD\) is equilateral, as shown to the right.
If \(E\) is the intersection point of both diagonals of \(ABCD\), what is the length of \(ED,\) the blue line segment in the diagram?
