Archimedes's Twins and a Cobbler's Knife

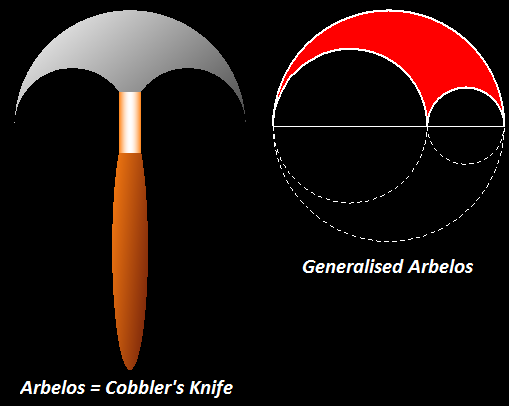

There is a beautiful and interesting shape called the Arbelos - or cobble's knife. It consists of semicircle whose diameter is shared by the diameters of two other semicircles as shown.

Imgur Imgur

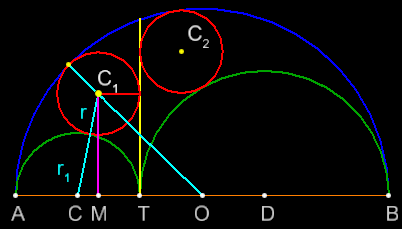

Among the many interesting properties this beautiful shape possesses, one is a pair of circles called Archimedes's twins. They are two circles tucked tangentially between two semicircles and a common tangent to the smaller two as shown in \red.

Imgur Imgur

Let O, C, D be the centers of the semicircles of radii R=OA,r1=CT,r2=TDR = OA, r_{1} = CT, r_{2} = TD respectively.

Let C1C_{1}, r = center & radius of the Archimedes circle on the left. and C1MC_{1}M be perpendicular to AB.

Then in triangle CC1OCC_{1}O we can mark some distances as follows -

CC1=r1+r;   OC1=Rr;CM=r1r;   MO=R2r1+rCC_{1} = r_{1}+r;~~~ OC_{1} = R-r; CM = r_{1}-r; ~~~MO = R-2r_{1}+r

MC12=CC12CM2MC_{1}^2 = CC_{1}^2 - CM^2

         =(r1+r)2(r1r)2~~~~~~~~~= (r_{1}+r)^2-(r_{1}-r)^2

         =4rr1................................................................(1)~~~~~~~~~= 4rr_{1} . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (1)

But we can also find MC as,

MC12=OC12OM2=(Rr)2(R2r1+r)2MC_{1}^2 = OC_{1}^2 - OM^2 = (R-r)^2-(R-2r_{1}+r)^2

         =(R22Rr+r2)(R2+4r12+r24Rr1+2Rr4rr1)~~~~~~~~~=(R^2-2Rr+r^2)-(R^2+4r_{1}^2+r^2-4Rr_{1}+2Rr-4rr_{1})

         =4Rr4r12+4Rr1+4rr1..........................................(2)~~~~~~~~~=-4Rr-4r_{1}^2+4Rr_{1}+4rr_{1} . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (2)

Equating (1) and (2) we get 4rr1=4Rr4r12+4Rr1+4rr1 4rr_{1}=-4Rr-4r_{1}^2+4Rr_{1}+4rr_{1} Rr=r12+Rr1 Rr=-r_{1}^2+Rr_{1} Rr=r1(Rr1)Rr=r_{1}(R-r_{1}) but Rr1=r2R-r_{1}=r_{2} r=r1r2Rr=\frac{r_{1}r_{2}}{R} Now we may derive the whole expression again for the Archimedes circle on the right or use symmetry of this expression to conclude it must hold for that circle too. Since the two circles have identical radii, they are called twins!

Note by Ujjwal Rane
