Corresponding Angles?

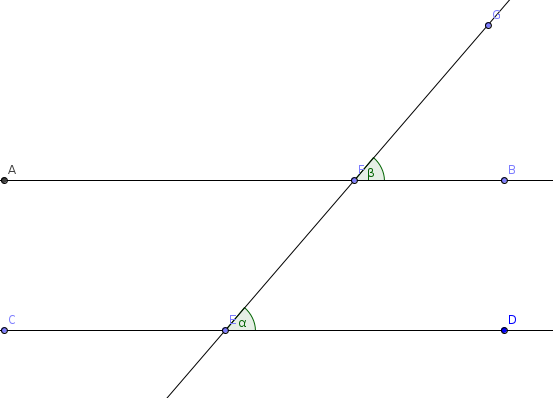

I wanted to prove that α=β\alpha = \beta here: Given ABCD\overline{AB} \parallel \overline{CD}.

The first thing needed was to prove that the distance between the intercepts (rather the vertical distance) remained constant for any xx value. This can be done using systems of equations easily: y1=mx+b1y2=mx+b2y_{1} = mx + b_{1}\\y_2 = mx + b_{2} You subtract mxmx on both sides and are left with 0x0x, which means that for an xx value, you will always have a result of the difference between b1b_{1} and b2b_{2}. This proves that, for any domain, the distances between the two lines will remain the same.

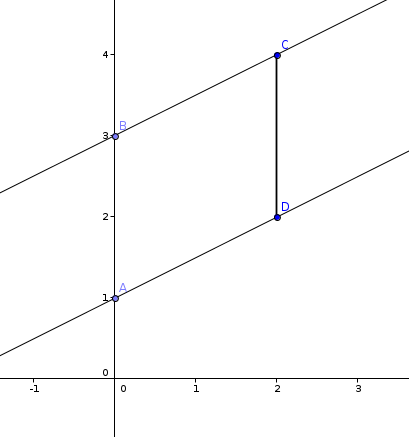

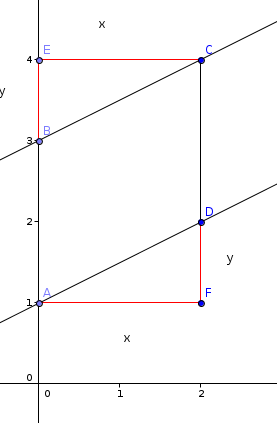

Discounting, for a moment, an extraneous or general transversal, let us start with two cases perpendicular to the x-axis on a Cartesian grid: We have already proven above that ABDC\overline{AB} \cong \overline{DC}, now we can show that BCAD\overline{BC} \cong \overline{AD} with the Pythagorean theorem if we construct a right triangle making the respective line segments the hypotenuses:

x2+y2=BC2=AD2x^{2} + y^{2} = \overline{BC}^{2} = \overline{AD}^2 Taking the square root, you can see that they are also congruent.

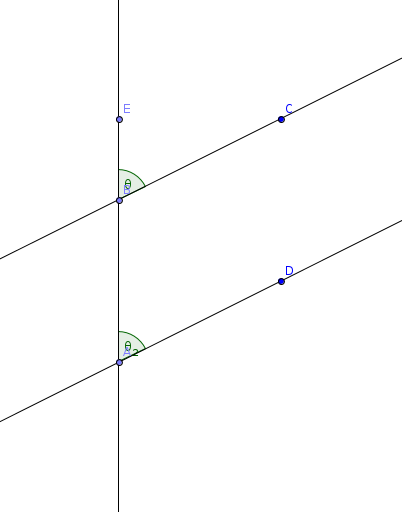

Next, we can show that the perpendicular case holds true: To best show this, you can construct a line segment BDABDCDB\overline{BD} \Rightarrow \bigtriangleup{ABD} \cong \bigtriangleup{CDB} With the predetermined congruence and the SSS postulate, this can be show to be true. This means also that: mDABmBCDm \angle{DAB} \cong m \angle{BCD} By the definition of a rectangle, mECB=90θmCBE=θm \angle{ECB} = 90 - \theta \Rightarrow m \angle{CBE} = \theta.

Taking away everything now immaterial, we see that the corresponding angles theorem is true for the perpendicular case:

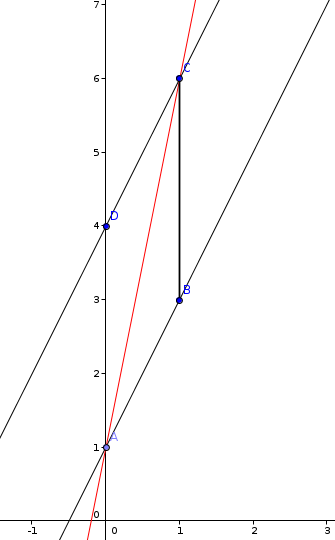

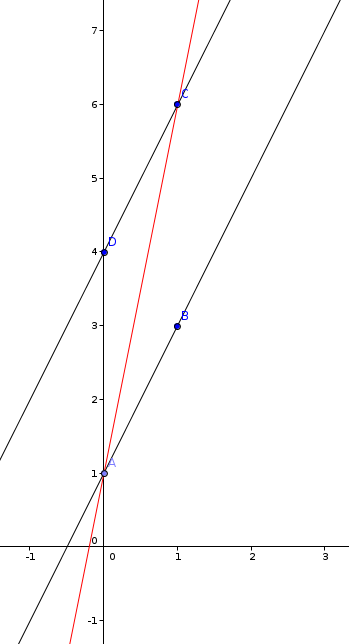

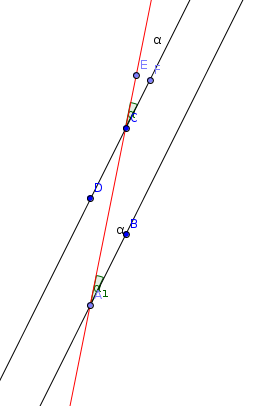

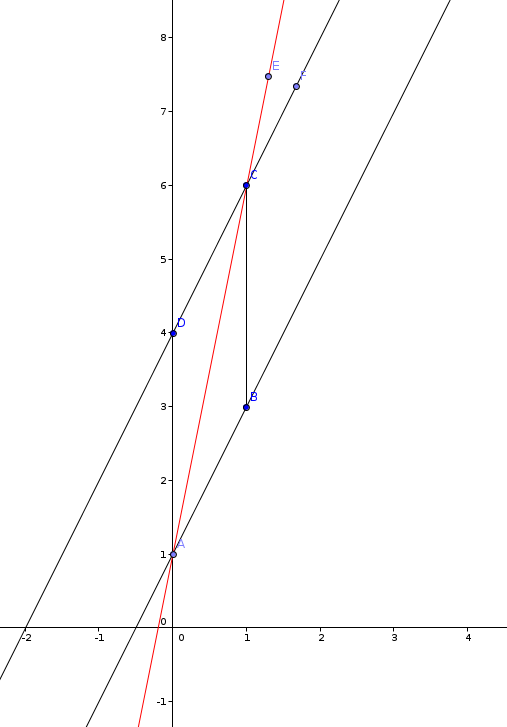

How do we now establish the theorem for all cases? Recall that we have already shown that for any value, we can construct a congruent parallelogram. Becuase the Cartesian coordinate system is relative, we can center it so that our transversal touches the bottom left and top right corners of the parallelogram for any transversal. Here is an example: We can again construct the parallelogram as before with the special case: Established previously, we know ABDC\overline{AB} \cong \overline{DC} and ADBC\overline{AD} \cong \overline{BC}. Rather perspicaciously, we know also ACAC\overline{AC} \cong \overline{AC}. And again, by SSS, mBACmDCAm \angle{BAC} \cong m \angle DCA. Simple Euclidean geometry will tell you, then, that mDCAmECFm \angle{DCA} \cong m \angle{ECF}. The product is realized when we again clear the excess:

QEDQED

Note by Drex Beckman
3 years, 1 month ago

No vote yet
1 vote

  Easy Math Editor

This discussion board is a place to discuss our Daily Challenges and the math and science related to those challenges. Explanations are more than just a solution — they should explain the steps and thinking strategies that you used to obtain the solution. Comments should further the discussion of math and science.

When posting on Brilliant:

  • Use the emojis to react to an explanation, whether you're congratulating a job well done , or just really confused .
  • Ask specific questions about the challenge or the steps in somebody's explanation. Well-posed questions can add a lot to the discussion, but posting "I don't understand!" doesn't help anyone.
  • Try to contribute something new to the discussion, whether it is an extension, generalization or other idea related to the challenge.
  • Stay on topic — we're all here to learn more about math and science, not to hear about your favorite get-rich-quick scheme or current world events.

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold

- bulleted
- list

  • bulleted
  • list

1. numbered
2. list

  1. numbered
  2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1

paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
    # 4 spaces, and now they show
    # up as a code block.

    print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in \( ... \) or \[ ... \] to ensure proper formatting.
2 \times 3 2×3 2 \times 3
2^{34} 234 2^{34}
a_{i-1} ai1 a_{i-1}
\frac{2}{3} 23 \frac{2}{3}
\sqrt{2} 2 \sqrt{2}
\sum_{i=1}^3 i=13 \sum_{i=1}^3
\sin \theta sinθ \sin \theta
\boxed{123} 123 \boxed{123}

Comments

Sort by:

Top Newest

You could just draw line BDBD.Then we have a+180b=180,ab=0,a=ba + 180 - b = 180, a - b = 0, a = b

Samuel Sturge - 3 weeks, 2 days ago
