Did i just make a new formula?

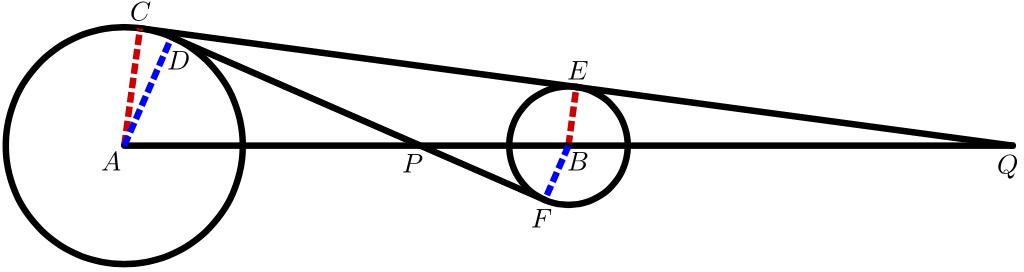

I was drawing two tangent circle many as I could with integer radius. I notice there is some pattern, so i quickly observe and find out 4 formula for two tangent circle.

Assume that \(AC\) and \(AD\) is \(R\) , and \(BF\) and \(BE\) is \(r\). Now these are the formula that i have founded,

  1. \(\Large AP = \frac{R}{R + r} \times AB\)

  2. \(\Large PB = \frac{r}{R+r} \times AB\)

  3. \(\Large BQ = \frac{r}{R-r} \times AB\)

  4. \(\Large AQ = \frac{R}{R-r} \times AB\)

Now to my question,

  1. Why did this formula work? I just analysis a pattern.

  2. Have you guys ever heard of this formula before?

Note by Jason Chrysoprase
1 year, 5 months ago

No vote yet
1 vote

  Easy Math Editor

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold

- bulleted
- list

  • bulleted
  • list

1. numbered
2. list

  1. numbered
  2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1

paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
    # 4 spaces, and now they show
    # up as a code block.

    print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in \( ... \) or \[ ... \] to ensure proper formatting.
2 \times 3 \( 2 \times 3 \)
2^{34} \( 2^{34} \)
a_{i-1} \( a_{i-1} \)
\frac{2}{3} \( \frac{2}{3} \)
\sqrt{2} \( \sqrt{2} \)
\sum_{i=1}^3 \( \sum_{i=1}^3 \)
\sin \theta \( \sin \theta \)
\boxed{123} \( \boxed{123} \)

Comments

Sort by:

Top Newest

Triangles ADP and BFP are similar with ratio \(R : r\). Triangles ACQ and BEQ are similar with ratio \(R : r\). So \(AP : AB = AP : (AP + PB) = R : (R + r)\) by the similarity, and likewise with the rest.

Ivan Koswara - 1 year, 5 months ago

Log in to reply

Similarity of triangles must be used here as Ivan sir suggested, btw nice observation jason.!

Rishabh Tiwari - 1 year, 5 months ago

Log in to reply

Ohhh, i get it

Jason Chrysoprase - 1 year, 5 months ago
