How to Count Squares!

Let me go grab a hamburger real quick...

Ok, I'm back.

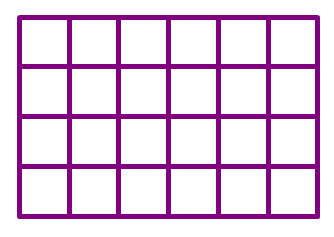

How many squares are there in the 6×46\times4 grid below? That's a reaallly good question!

Let's start by counting the smallest 1×11\times1 squares, this is just the same as counting the number of unit squares in a 6×46\times4 grid, there are 6×4=246\times4=24 1 by 1 squares in the grid.

Now let's move on to the 2×22\times2 squares, notice that counting the number of 2×22\times2 squares in a 6×46\times4 grid is just the same as counting the number of unit squares in a 5×35\times3 grid. So the number of 2 by 2 squares in the grid is 5×3=155\times3=15.

Now the 3×33\times3 squares, similarly, counting the number of 3×33\times3 squares in a 6×46\times4 grid is just the same as counting the number of unit squares in a 4×24\times2 grid, which is 4×2=84\times2=8.

And again the number of 4×44\times4 squares in a 6×46\times4 grid is equal to the number of unit squares in a 3×13\times1 grid, which is 3×1=33\times1=3.

Add up all the number of squares together: 24+15+8+3=5024+15+8+3=50. Tada! We now have our answer! There are 50 squares in a 6×46\times4 grid.


Mmm... the hamburger is really good...

Back on topic, in general, what is the total number of squares in an a×ba\times b grid (where aa is the width of the grid and bb is the height of the grid), given aba\geqslant b?

Again let's start from the 1×11\times1 squares, that's trivial, there's abab of them.

Now moving on to the 2×22\times2 squares, the number of 2×22\times2 squares in an a×ba\times b grid is equal to the number of unit squares in an (a1)×(b1)(a-1)\times(b-1) grid.

Notice the pattern? Counting the number of n×nn\times n squares in an a×ba\times b grid is the same as counting the number of unit squares in an (an+1)×(bn+1)(a-n+1)\times(b-n+1) grid.

The largest square that can contain in an a×ba\times b grid given that aba\geqslant b is b×bb\times b.

Hence, the total number of squares in an a×ba\times b grid is ab+(a1)(b1)+(a2)(b2)++[a(b2)][b(b2)]+[a(b1)][b(b1)]ab+(a-1)(b-1)+(a-2)(b-2)+\ldots+[a-(b-2)][b-(b-2)]+[a-(b-1)][b-(b-1)] Or i=0b1(ai)(bi)\sum_{i=0}^{b-1}{(a-i)(b-i)}

This is ugly, we don't like sigma symbols sitting around, so why not we simplify this a little bit...

i=0b1(ai)(bi)=i=0b1[ab(a+b)i+i2]=ab2(a+b)b(b1)2+b(b1)(2b1)6=b[ababa+b2b2+2b23b+16]=b6[6ab3ab+3a3b2+3b+2b23b+1]=b6[3ab+3ab2+1]=b(b+1)(3ab+1)6\begin{aligned} \sum_{i=0}^{b-1}{(a-i)(b-i)}&=\sum_{i=0}^{b-1}{[ab-(a+b)i+i^2]} \\&=ab^2-\frac{(a+b)b(b-1)}{2}+\frac{b(b-1)(2b-1)}{6} \\&=b\left[ab-\frac{ab-a+b^2-b}{2}+\frac{2b^2-3b+1}{6}\right] \\&=\frac{b}{6}\left[6ab-3ab+3a-3b^2+3b+2b^2-3b+1\right] \\&=\frac{b}{6}\left[3ab+3a-b^2+1\right] \\&=\frac{b(b+1)(3a-b+1)}{6} \end{aligned} BOOM! There we have it! *Round of applause* *Fireworks* *Pancakes*

The total number of squares in an a×ba\times b grid (where aa is the width of the grid and bb is the height of the grid), given aba\geqslant b is b(b+1)(3ab+1)6\frac{b(b+1)(3a-b+1)}{6}

If a<ba<b, then we just swap aa and bb.

Special case: If a=ba=b, the above equation becomes a(a+1)(2a+1)6\frac{a(a+1)(2a+1)}{6} which is the formula for the sum of squares from 1 to aa.

Done! Now let me finish my burger...
