Hydrostatics + Moment of force = Confusion!!!

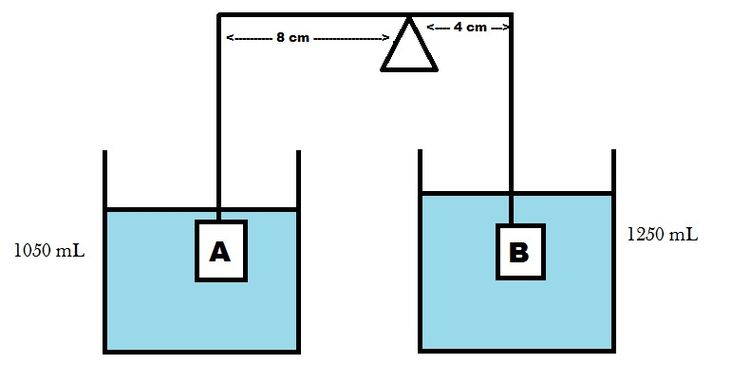

A uniform rod of weight $$1$$ $$kg$$ is held in equilibrium position as shown in the figure. If the initial volumes of the water in the containers are equal and the density of objects $$A$$ and $$B$$ are $$3.5$$ $$g$$ $$cm^{-3}$$ and $$4$$ $$g$$ $$cm^{-3}$$ respectively,determine the weight of objects $$A$$ and $$B$$.

Note : $$A$$ and $$B$$ are made up of same material.

Note by Sahba Hasan
