just trying to make my first discussion :D and try to solve :D

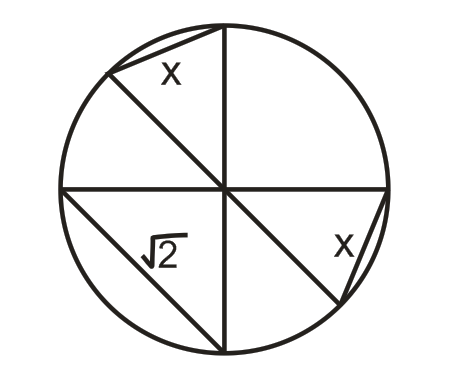

Three distinct diameters are drawn on a unit circle such that chords are drawn as shown in the figure. If the length of one chord is \(\sqrt{2} \) units and the other two chords are of equal lengths, what is the common length of these chords?

Note by Ian Mana
4 years, 7 months ago

No vote yet
10 votes

  Easy Math Editor

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold

- bulleted
- list

  • bulleted
  • list

1. numbered
2. list

  1. numbered
  2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1

paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
    # 4 spaces, and now they show
    # up as a code block.

    print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in \( ... \) or \[ ... \] to ensure proper formatting.
2 \times 3 \( 2 \times 3 \)
2^{34} \( 2^{34} \)
a_{i-1} \( a_{i-1} \)
\frac{2}{3} \( \frac{2}{3} \)
\sqrt{2} \( \sqrt{2} \)
\sum_{i=1}^3 \( \sum_{i=1}^3 \)
\sin \theta \( \sin \theta \)
\boxed{123} \( \boxed{123} \)

Comments

Sort by:

Top Newest

since radius is 1(unit circle). the angle opposite to the Root 2 side is 90 (converse of pythagoras theorem. hence its vertically opposite angle is also 90.

calling the centre as o and the diameter on which the 2 equal sides sit on as AB.one side as AC and the other equal side as BD since the radii are equal and AC=BD from sss postulate angle BOD = angle AOC Since they are on a straight line with one angle as 90 degrees angle AOC=angle bod=45

then use cosine rule to get the answer

Pranav Chakravarthy - 4 years, 7 months ago

Log in to reply

sqrt [ 2 - (sqrt 2) ]

Achint Gupta - 4 years, 7 months ago

Log in to reply

\(\sqrt (2- \sqrt 2)\)

Shourya Pandey - 4 years, 7 months ago

Log in to reply

root of 2-root 2

sorry didnt have time to put in latex

Pranav Chakravarthy - 4 years, 7 months ago

Log in to reply

nice can you explain how did you get it :D

Ian Mana - 4 years, 7 months ago

Log in to reply

easy thing ans- sqrt[2-sqrt(2)]

Lalit Shrinivas - 4 years, 7 months ago

Log in to reply

@Lalit Shrinivas He said to explain.

Tim Ye - 4 years, 7 months ago

Log in to reply

\sqrt (2- \sqrt 2)

Anshul Agarwal - 4 years, 7 months ago

Log in to reply

We have a isosceles triangle whit a=x b=1 and angle at A is 45 (at B and C are 67.5 ) so we can make a right triangle witch has hypotenuse 1 and a side x/2. Since we have all the angles we can see that x/2 = 1cos(67.5) so x=2cos(67.5) or x=2*sin(22.5) witch is approximately 0.765

Djordje Marjanovic - 4 years, 7 months ago

Log in to reply

I like this :]

Ksenia Solovieva - 4 years, 7 months ago

Log in to reply

Sweet....

Rish Malviya - 4 years, 7 months ago

Log in to reply

sqrt(2-sqrt(2)). solved using basic geometry no trigonometry.

Andres Fabrega - 4 years, 7 months ago

Log in to reply

×
