Please Help!

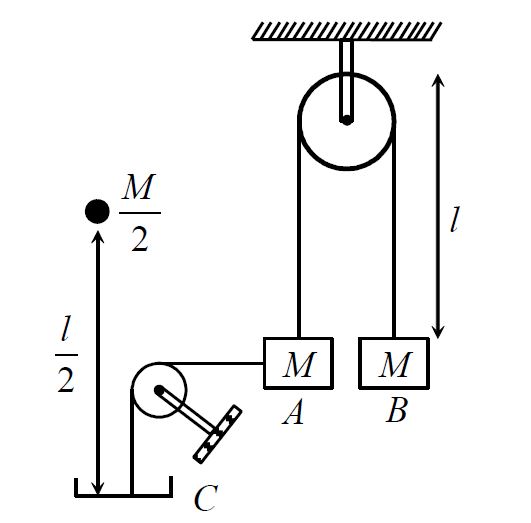

Two blocks AA and BB of same mass MM are connected with each other with an ideal string of length 2l2l passing over an ideal pulley. The block AA is connected to a light pan CC with an ideal string as shown in figure. A particle of mass M2\frac{M}{2} is dropped on pan from height l2\frac{l}{2} as shown. If collision between particle and pan is plastic, acceleration of BB just after the collision is?

Ans is g9\frac{g}{9}.

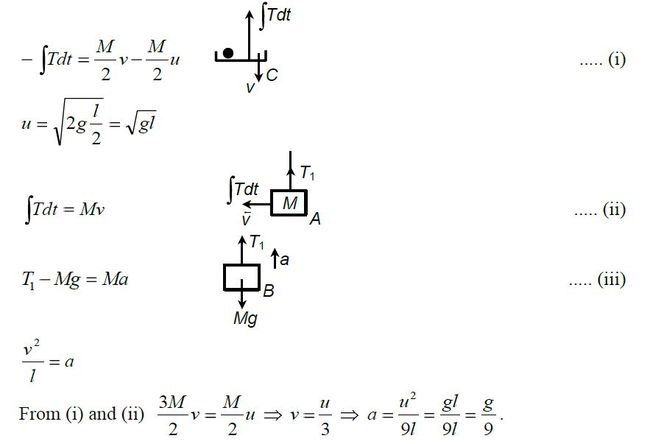

Is this solution correct?

Note by Nishant Rai
4 years, 2 months ago

No vote yet
1 vote

</code>...<code></code> ... <code>.">   Easy Math Editor

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold

- bulleted
- list

  • bulleted
  • list

1. numbered
2. list

  1. numbered
  2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1

paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
    # 4 spaces, and now they show
    # up as a code block.

    print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in </span>...<span></span> ... <span> or </span>...<span></span> ... <span> to ensure proper formatting.
2 \times 3 2×3 2 \times 3
2^{34} 234 2^{34}
a_{i-1} ai1 a_{i-1}
\frac{2}{3} 23 \frac{2}{3}
\sqrt{2} 2 \sqrt{2}
\sum_{i=1}^3 i=13 \sum_{i=1}^3
\sin \theta sinθ \sin \theta
\boxed{123} 123 \boxed{123}

Comments

Sort by:

Top Newest

@Raghav Vaidyanathan @Tanishq Varshney @Kushal Patankar Help!

Nishant Rai - 4 years, 2 months ago

Log in to reply

@satvik pandey i have made a note on this problem inviting views of other brilliant members(bc now even i am confused :/ )

Nishant Rai - 4 years, 2 months ago

Log in to reply

Thanks for making it! :)

satvik pandey - 4 years, 2 months ago

Log in to reply

Why wasn't T1T_1 impulsive.😓

Kyle Finch - 4 years, 2 months ago

Log in to reply

Can you please post the solution to Angular width of Refracted Beam!

Raghav Vaidyanathan

Nishant Rai - 4 years, 2 months ago

Log in to reply

@Raghav Vaidyanathan

Nishant Rai - 4 years, 2 months ago

Log in to reply

ok

Raghav Vaidyanathan - 4 years, 2 months ago

Log in to reply

@Raghav Vaidyanathan Could you please explain this answer?

satvik pandey - 4 years, 2 months ago

Log in to reply

@Nishant Rai

Although your answer is correct, the FBDs that you have drawn are not. You have missed out the gravitational force on AA. Due to this reason, you have skipped using T1Mg=MaT_1 -Mg=Ma

In reality, at the moment the mass strikes the pan:

T1=Mg+Mv2lT_1 = Mg + M\frac {v^2}{l}

And hence: T1Mg=Ma=Mv2lT_1 -Mg=Ma=M\frac {v^2}{l}

Otherwise, you can also use constraint relations to get to same result.

Raghav Vaidyanathan - 4 years, 2 months ago

Log in to reply

@satvik pandey

Raghav Vaidyanathan - 4 years, 2 months ago

Log in to reply

Raghav Vaidyanathan

i have done the same thing, (this solution is not mine, this question came in mock paper of some coaching institute, they have provided this solution)

Nishant Rai - 4 years, 2 months ago

Log in to reply

Okay, but they aren't fully wrong, we can get everything without FBD itself...

Raghav Vaidyanathan - 4 years, 2 months ago

Log in to reply

@Raghav Vaidyanathan btw you are appearing for JEE ? are you enrolled in any coaching institute?

Nishant Rai - 4 years, 2 months ago

Log in to reply

@Nishant Rai Yes, FIITJEE

Raghav Vaidyanathan - 4 years, 2 months ago

Log in to reply

I have a confusion. I think it is assumed that just after the collision block A performs a circular motion. But as soon as the block a A gets a tangential velocity it would have centripetal as well as a radial acceleration. How can we ignore that?

satvik pandey - 4 years, 2 months ago

Log in to reply

I think you guys would like to see this discussion.

satvik pandey - 4 years, 2 months ago

Log in to reply

My Answer is a little different..

Rohit Gupta - 4 years, 1 month ago

Log in to reply

×
