Ratio of Triangle Area in Folded Rectangle

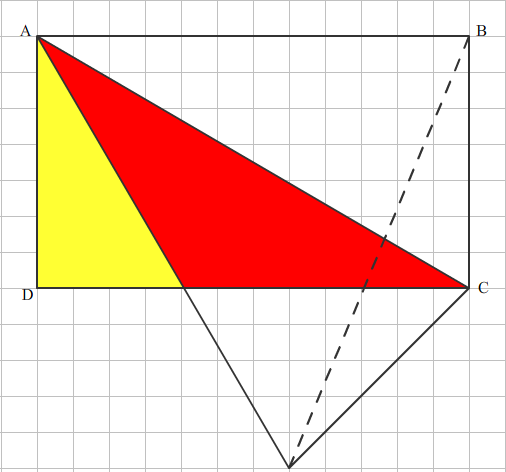

Hello again. I have a problem that occured over a year ago. But, I cannot solve it until now. The problem is: Given that the rectangle with length x and width y. This rectangle was folded based on its diagonal to form two triangles. Find the area ratio between red and yellow triangles! I've already tried to find it, but still don't get the solution. Maybe any theorems or formulas that I can use to solve this problems? Thanks

Note by Leonardo Chandra
4 years, 6 months ago

No vote yet
1 vote

  Easy Math Editor

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold

- bulleted
- list

  • bulleted
  • list

1. numbered
2. list

  1. numbered
  2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1

paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
    # 4 spaces, and now they show
    # up as a code block.

    print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in \( ... \) or \[ ... \] to ensure proper formatting.
2 \times 3 \( 2 \times 3 \)
2^{34} \( 2^{34} \)
a_{i-1} \( a_{i-1} \)
\frac{2}{3} \( \frac{2}{3} \)
\sqrt{2} \( \sqrt{2} \)
\sum_{i=1}^3 \( \sum_{i=1}^3 \)
\sin \theta \( \sin \theta \)
\boxed{123} \( \boxed{123} \)

Comments

Sort by:

Top Newest

First off, I think the graph is innacurate, because the botom angle is produced by a reflection of the top-right angle, which is 90 degrees. The bottom angle is not 90 degrees though. Let's not let that impede us though.

Here's my method of solving it. It is based on the double-angle formula for tangent. The slope of AC is \(-\frac{y}{x}\). Call the point on the bottom E, and the intersection of AE and DC point F. The duplication of \(\angle CAB\) onto \(\angle EAC\) produces \(\angle EAB\), which the slope of AE is derived from.

My patience with LaTex is not good enough to write out all the algebra, but the slope of AE is \(-\frac{2xy}{x^{2}-y^{2}}\).

Next, DF is the run of line AE when the rise is \(-y\) Using the slope equation for AE, the run is \(\frac{x^{2}-y^{2}}{2x}\). That is the base for the red triangle. The base for the yellow triangle is \(x-\frac{x^{2}-y^{2}}{2x}=\frac{x^{2}+y^{2}}{2x}\).

SInce we have found the two bases, and the height for the two is both y , the ratio of the red triangle to the yellow is\(\frac{x^{2}-y^{2}}{x^{2}+y^{2}}\).

\(\frac{x^{2}-y^{2}}{x^{2}+y^{2}}\) is the answer.

Clarence Chen - 4 years, 6 months ago

Log in to reply

Is it supposed to be x and y, or specifically 7 and 12 ?

Kathleen Kasper - 4 years, 6 months ago

Log in to reply

yes, it's only tell me about the variables, x and y, no other specifics number. The picture were drawn not in the real measure, only approximation.

Leonardo Chandra - 4 years, 6 months ago

Log in to reply

It states 'length x and width y' in the actual problem. I believe the diagram was posted so that we could see which triangles he was talking about.

Tim Ye - 4 years, 6 months ago

Log in to reply

×
