Rotational Mechanics Question

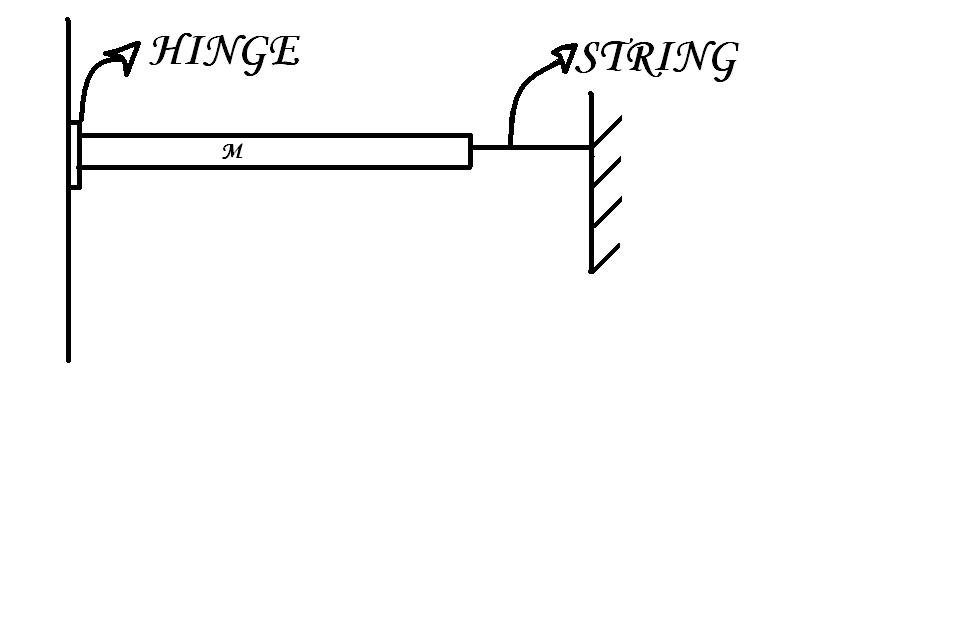

Q. A uniform metre stick of mass M is hinged at one end and supported in the horizontal direction by a string attached to the other end. What should be the initial angular acceleration of the stick if the string is cut?

a. \(\frac{3}{2}g\hspace{2 mm}rad\hspace{1 mm}s^{-2}\)

b. \(g\hspace{2 mm}rad\hspace{1 mm}s^{-2}\)

c. \(3g\hspace{2 mm}rad\hspace{1 mm}s^{-2}\)

d. \(4g\hspace{2 mm}rad\hspace{1 mm}s^{-2}\)

The answer given was a... But i think it should be c. Pls solve this..

Note by Krishna Jha
4 years, 4 months ago

No vote yet
2 votes

  Easy Math Editor

MarkdownAppears as
*italics* or _italics_ italics
**bold** or __bold__ bold

- bulleted
- list

  • bulleted
  • list

1. numbered
2. list

  1. numbered
  2. list
Note: you must add a full line of space before and after lists for them to show up correctly
paragraph 1

paragraph 2

paragraph 1

paragraph 2

[example link](https://brilliant.org)example link
> This is a quote
This is a quote
    # I indented these lines
    # 4 spaces, and now they show
    # up as a code block.

    print "hello world"
# I indented these lines
# 4 spaces, and now they show
# up as a code block.

print "hello world"
MathAppears as
Remember to wrap math in \( ... \) or \[ ... \] to ensure proper formatting.
2 \times 3 \( 2 \times 3 \)
2^{34} \( 2^{34} \)
a_{i-1} \( a_{i-1} \)
\frac{2}{3} \( \frac{2}{3} \)
\sqrt{2} \( \sqrt{2} \)
\sum_{i=1}^3 \( \sum_{i=1}^3 \)
\sin \theta \( \sin \theta \)
\boxed{123} \( \boxed{123} \)

Comments

Sort by:

Top Newest

The stick has moment of inertia \(I = \tfrac{1}{3}ML^2\) about the hinge. The weight of the stick is \(W = Mg\) and it acts at the center of mass which is \(d = \tfrac{1}{2}L\) from the hinge. Initially, the weight is perpendicular to the stick. So, the total torque initially is \(\tau = Wd = \tfrac{1}{2}MgL\). Since \(\tau = I\alpha\), the initial angular acceleration is \(\alpha = \dfrac{\tau}{I} = \dfrac{\tfrac{1}{2}MgL}{\tfrac{1}{3}ML^2} = \dfrac{3g}{2L}\). Plug in \(L = 1m\) to get the answer.

Jimmy Kariznov - 4 years, 4 months ago

Log in to reply

But L=1m is not given right??

Joe Bobby - 2 years, 2 months ago

Log in to reply

nice......just mingle around the formulas...as simple as that.

Max B - 3 years, 7 months ago

Log in to reply

Thanks...

Krishna Jha - 4 years, 4 months ago
