# Turn The Pencil Around!

[Warning: This post is quite basic, I mean really basic!]

In an earlier post, we saw a proof without words. On this post we'll see another proof without words. I really loved this when I saw it for the first time and I hope you do too.

Today's topic is really simple: the sum of the angles of a triangle.

We all know that the sum of the angles of any triangle is equal to $$180^{\circ}$$. We've all learned how to prove that in school.

Some of you probably tore off the corners of a triangle to verify that in some point in your life [if you haven't done this, try it now!].

Alt text

But on this post, we're going to do it in a different way, a way that [hopefully] makes us appreciate the beauty in the simplest of things. Let's get on with it!

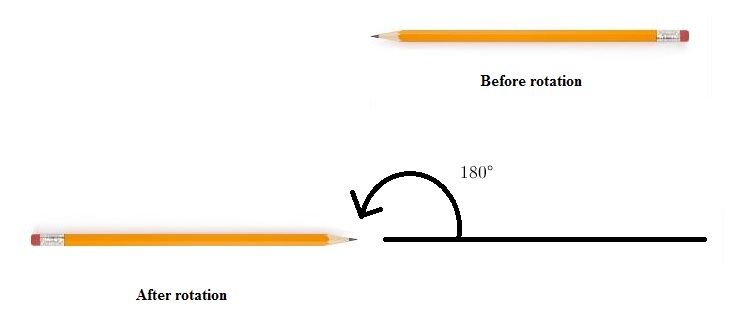

We're going to start with a question? What does it mean when you rotate some thing by $$180^{\circ}$$? If we had a pencil lying horizontally and if we rotated it by $$180^\circ$$, what would happen?

Alt text

The picture above demonstrates what a rotation by $$180^\circ$$ looks like. Keep that in mind.

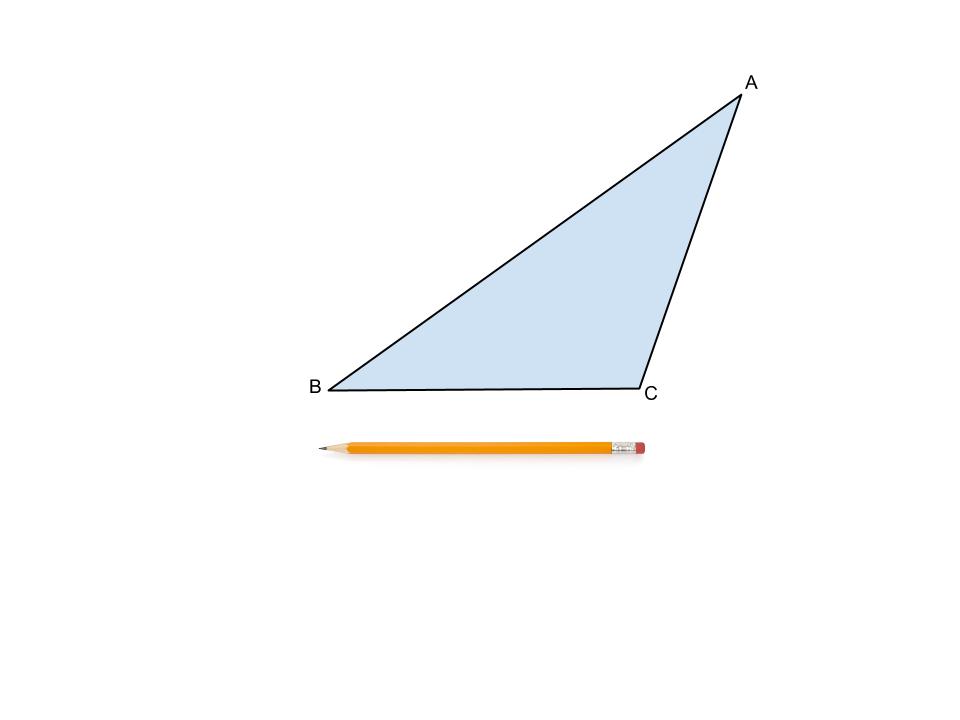

We're going to start by drawing a triangle and putting a pencil horizontally below it.

Alt text

We have to prove that $$\angle CBA+ \angle BAC + \angle ACB=180^\circ$$.

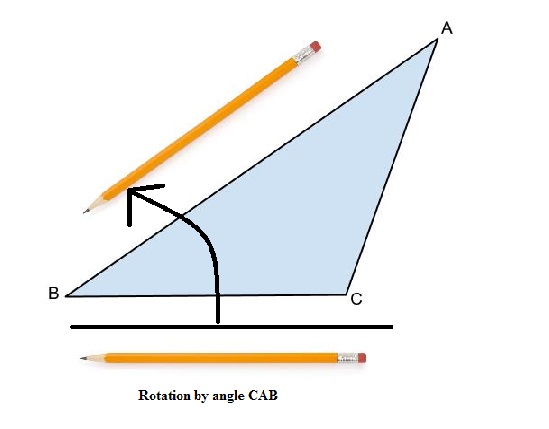

We're going to start by rotating the pencil by $$\angle CBA$$.

Alt text

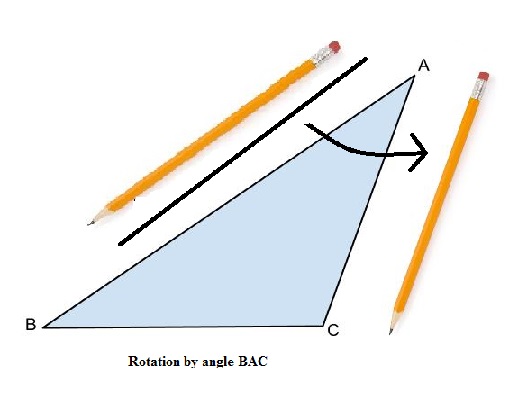

Then by $$\angle BAC$$...

Alt text

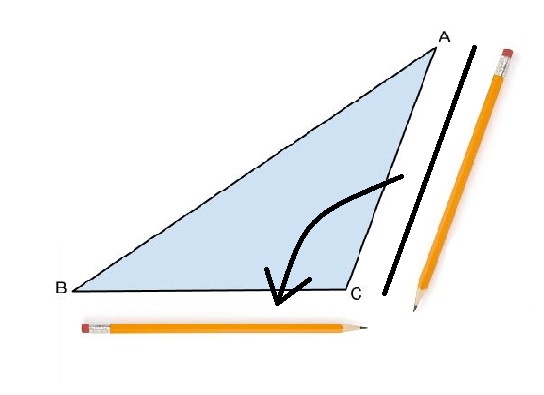

And finally, by $$\angle ACB$$...

Alt text

Now if you compare how the pencil was before rotation and what it looks like after being rotated by the angles of triangle $$ABC$$, you'll see that the pencil has rotated exactly by $$180^\circ$$.

So, $$\angle CBA+ \angle BAC + \angle ACB=180^\circ$$ [Proved without words!].

This just goes to show that you can look at the simplest of things from a different perspective and enjoy the beauty in them.

Now using the same principle, prove to yourself that the sum of the internal angles of a quadrilateral equals $$360^\circ$$. Turn the pencil around!
